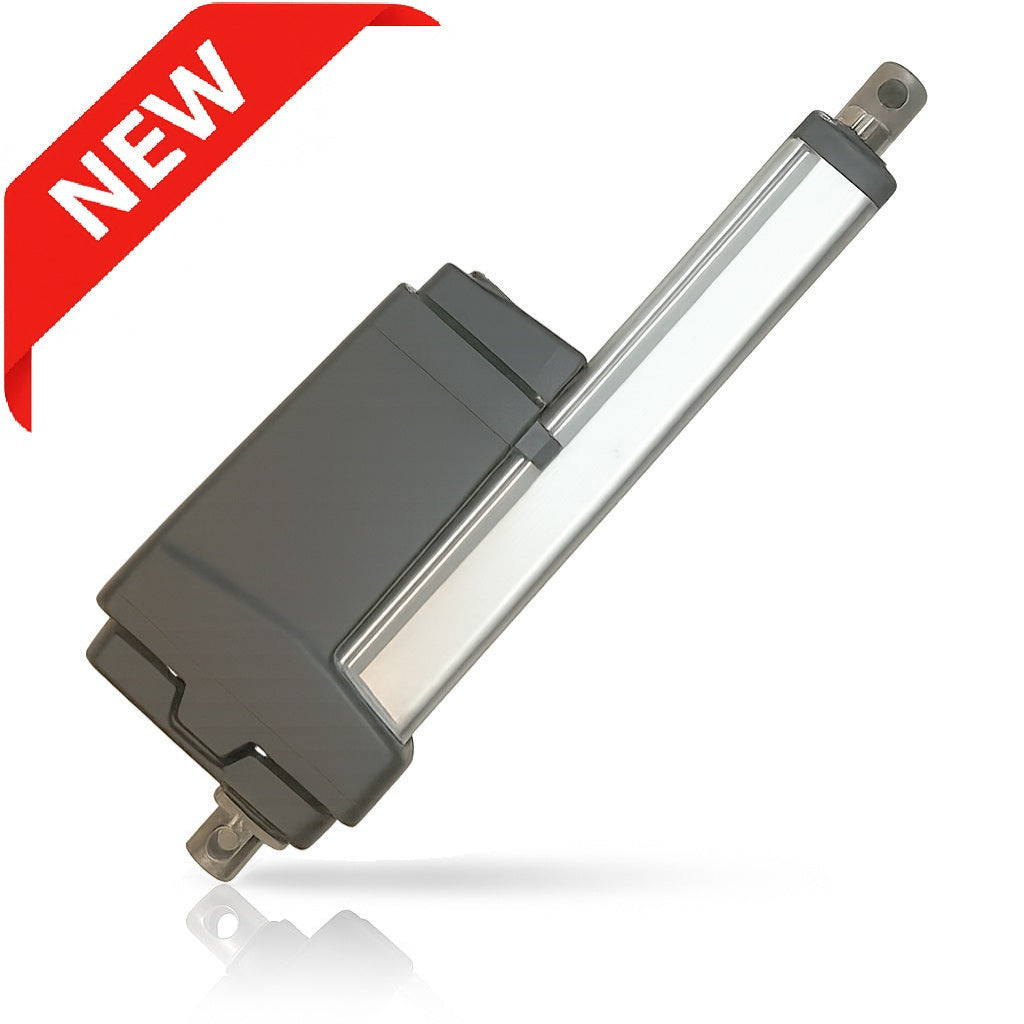

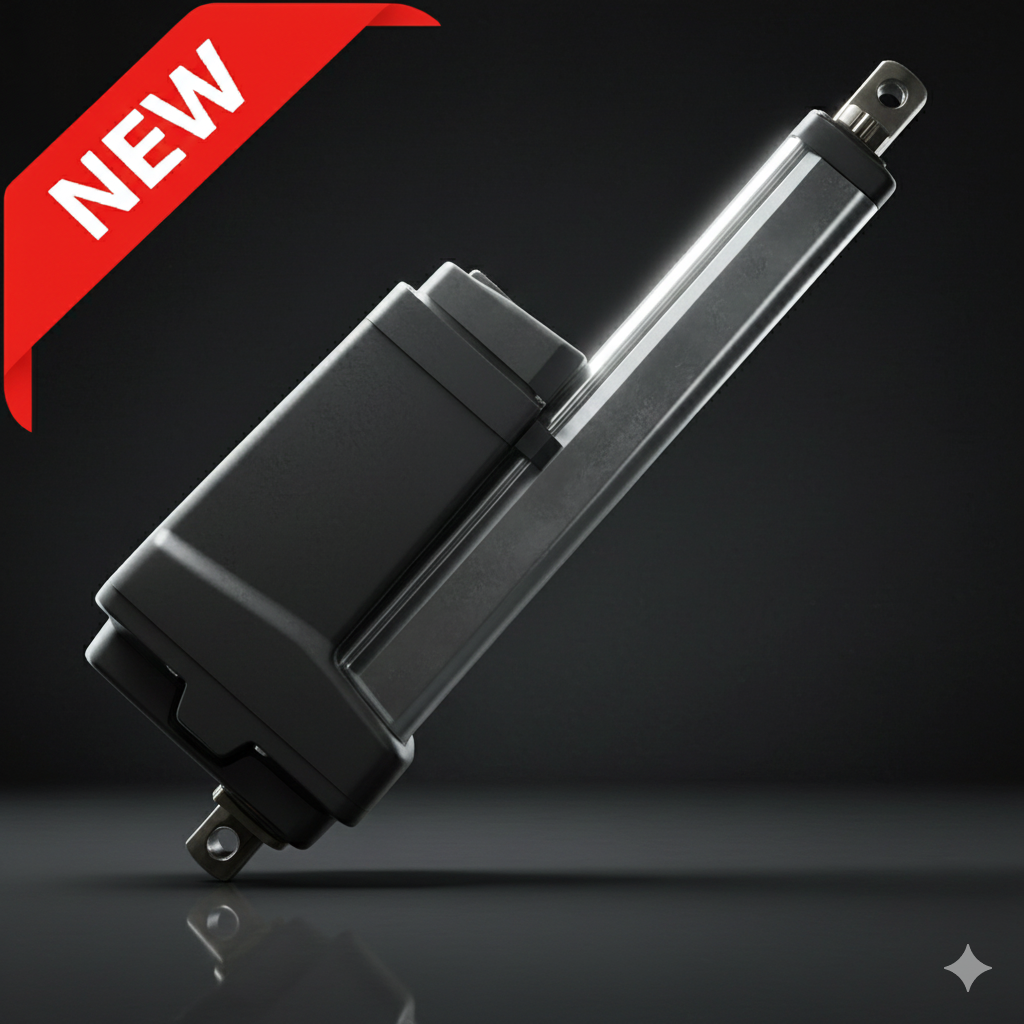

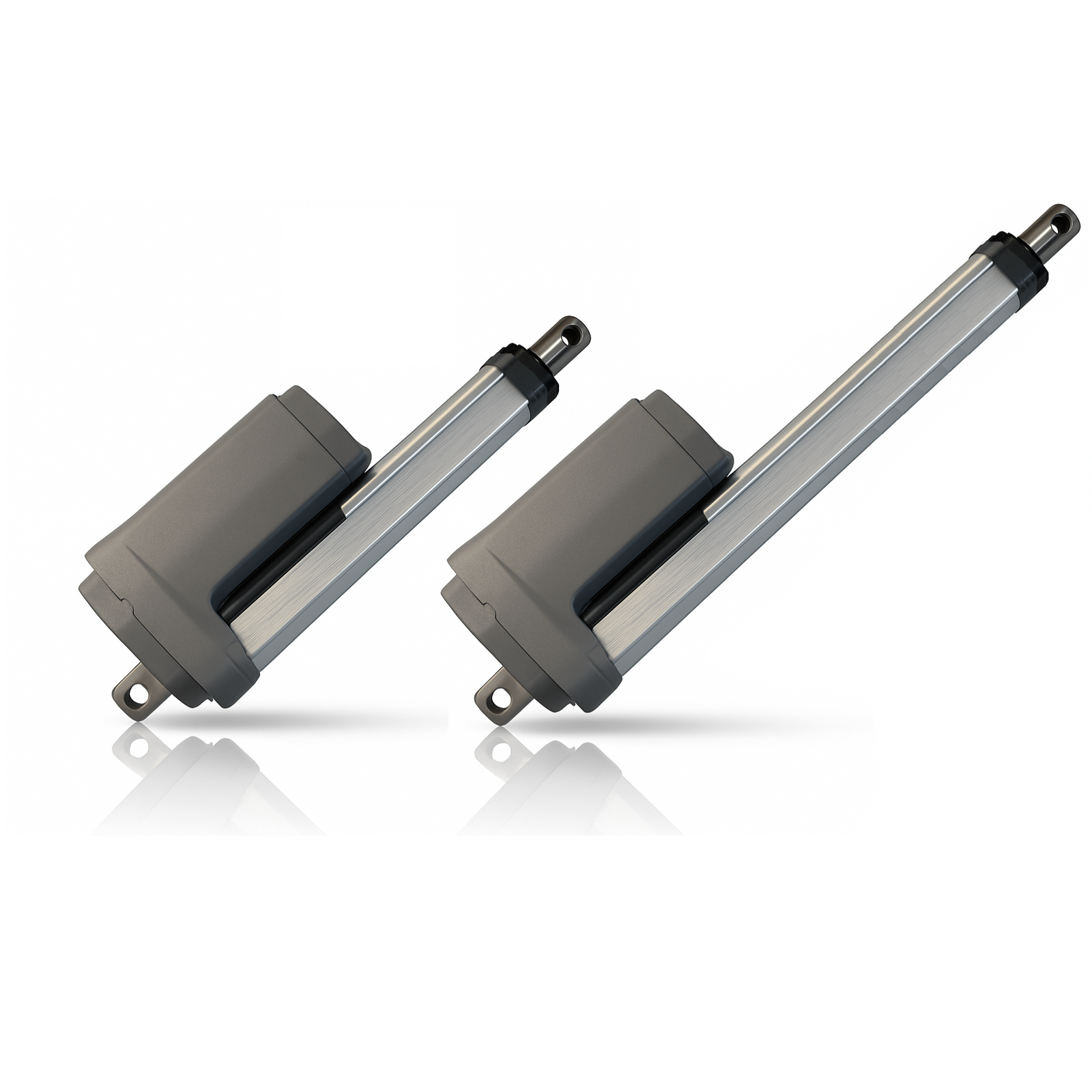

The FIRGELLI Industrial Linear Actuator is built for the toughest environments, delivering up to 2,200 lbs (10,000 N) up to 35" stroke and 1,910 lbs in the 40" stroke. With IP66 environmental protection, featuring integrated limit switches and Hall-sensor feedback, this unit is engineered for rugged reliability in outdoor, agricultural, and industrial automation applications.
For basic operation, simply use the standard 2-wire hookup — the actuator will stop automatically at each end of travel thanks to the built-in limit switches. The included Hall sensor wires are optional and allow for precise position monitoring if required.
Download Brochure here
Features and Benefits
- Massive Force Output: Capable of pushing/pulling up to 2,200 lbs (10,000 N) for strokes up to 35" and 1,910 lbs force on the 40" Stroke
- IP66 Rated: Dust-tight and resistant to powerful water jets, making it ideal for harsh outdoor conditions.
- High-Precision Feedback: Built-in Hall sensor (0.049mm per pulse) included on all units for optional synchronization or position control. Please note: NOT Compatible with our FCB control boards.
- Built-In Limit Switches: Internal non-adjustable switches automatically shut off the motor at full extension and retraction to protect equipment.
- Ball-Screw Drive: Provides higher efficiency, speed, and durability compared to standard lead screws.
- Manual Override Mechanism: Â Built-in manual drive interface (hex/lead screw access) enables controlled extension and retraction using a standard 6mm wrench during power interruption.
- Wide Temperature Range: Operates reliably from -40°C to +65°C (-40°F to 150°F).
- Stroke Options: Available in increments from 10" to 40".
- Maintenance-Free: Sealed design requires no ongoing maintenance.
- Accessories: Compatible with MB-18 Brackets, Rocker Switches, and Remote Controls.

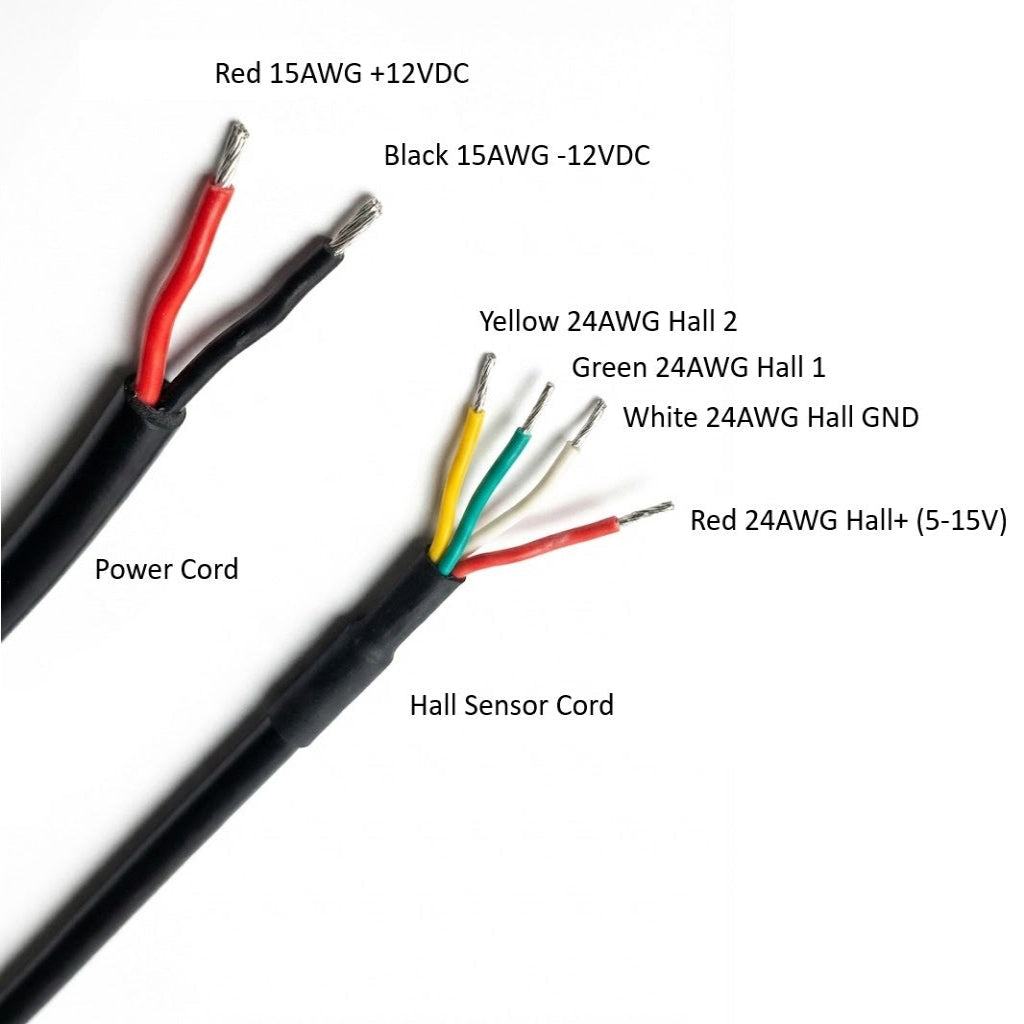

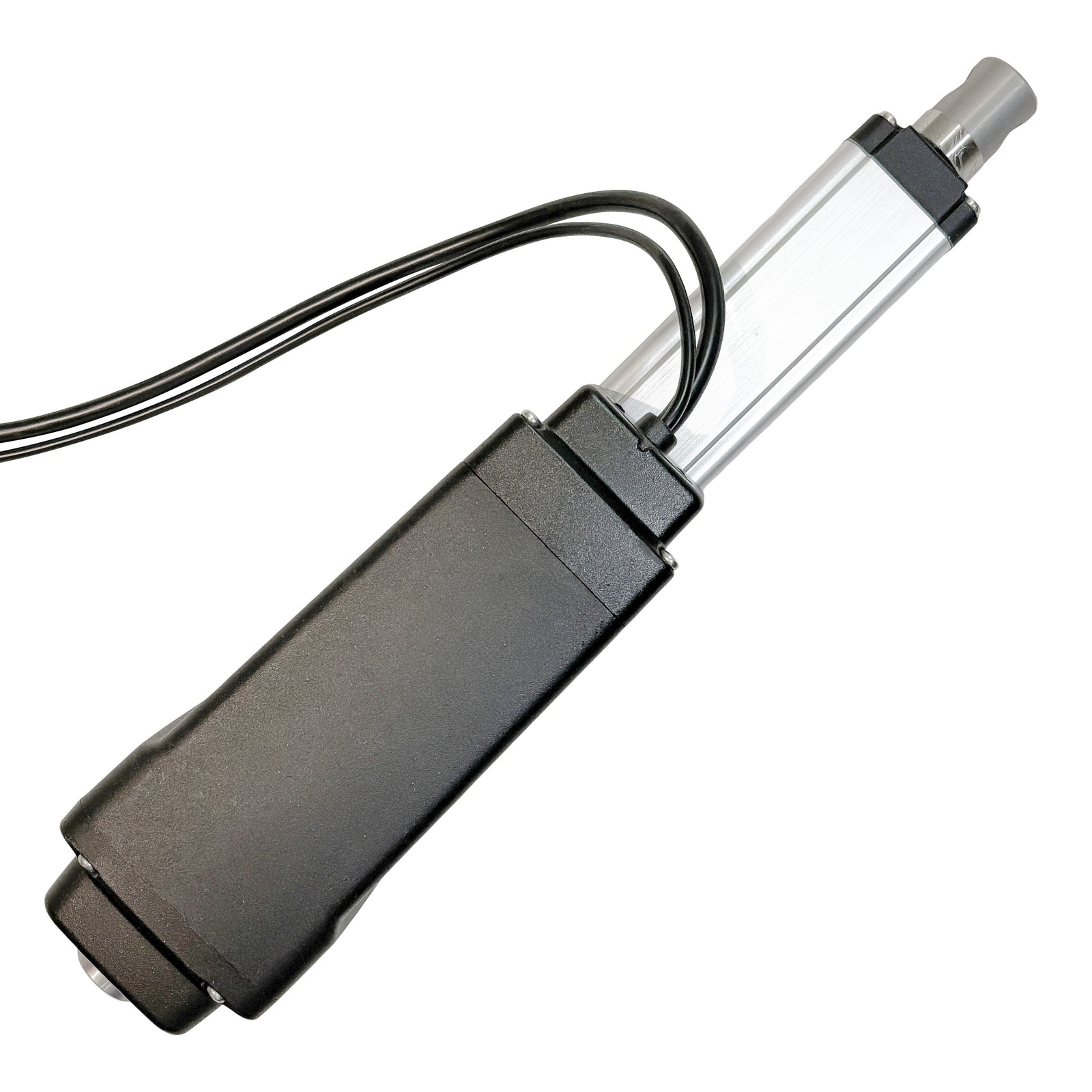

*Wiring Note: Connect the two heavy-gauge wires to a DC power source (12V or 24V depending on model) to extend; reverse polarity to retract. The smaller gauge wires are for the Hall Sensor feedback (optional).
| Spec | Value |
|---|---|
| Dynamic Force | 2,200 lbs (10,000 N) |
| Static Force | 3,500 lbs (15,558 N) |
| Input Voltage | 12 VDC or 24 VDC |
| Speed (No Load) | 0.5" (13mm) per second |
| Speed (Full Load) | 0.29" (7.5mm) per second |
| Gear Ratio | 40:1 |
| Max Draw | 20 amps |
| Duty Cycle | 25% at full load (Higher duty cycle available at lower loads) |
| IP Rating | IP66 (Dust & Water Jet Resistant) |
| Operating Temp | -40°C to +65°C |
| Feedback | Hall Sensor (0.061mm per pulse) |
| Accuracy |
±2mm |
| Manual Over-ride | Upon Electrical failure you can manually move the actuator via removing the 5mm Screw from the housing to access the 6mm Allen wrench socket internally |
| Repeatability | ±0.5mm |
| Mounting Holes | 0.51" (13mm) diameter. Fits MB18 Brackets |
| Wire Length | 1.5m (Tinned bare wires)Â |
| Overload Protection | Built-in electrical overload protection |
| Stroke | Retracted (Hole-to-Hole) | Extended (Hole-to-Hole) |
|---|---|---|
| 10" | 18" (457 mm) | 28" (711 mm) |
| 15" | 25" (625 mm) | 40" (1016 mm) |
| 20" | 30" (762 mm) | 50" (1270 mm) |
| 25" | 37" (940 mm) | 62" (1575 mm) |
| 30" | 42" (1067 mm) | 72" (1829 mm) |
| 35" | 49" (1245 mm) | 84" (2134 mm) |
| 40" | 54" (1372 mm) | 94" (2388 mm) |
