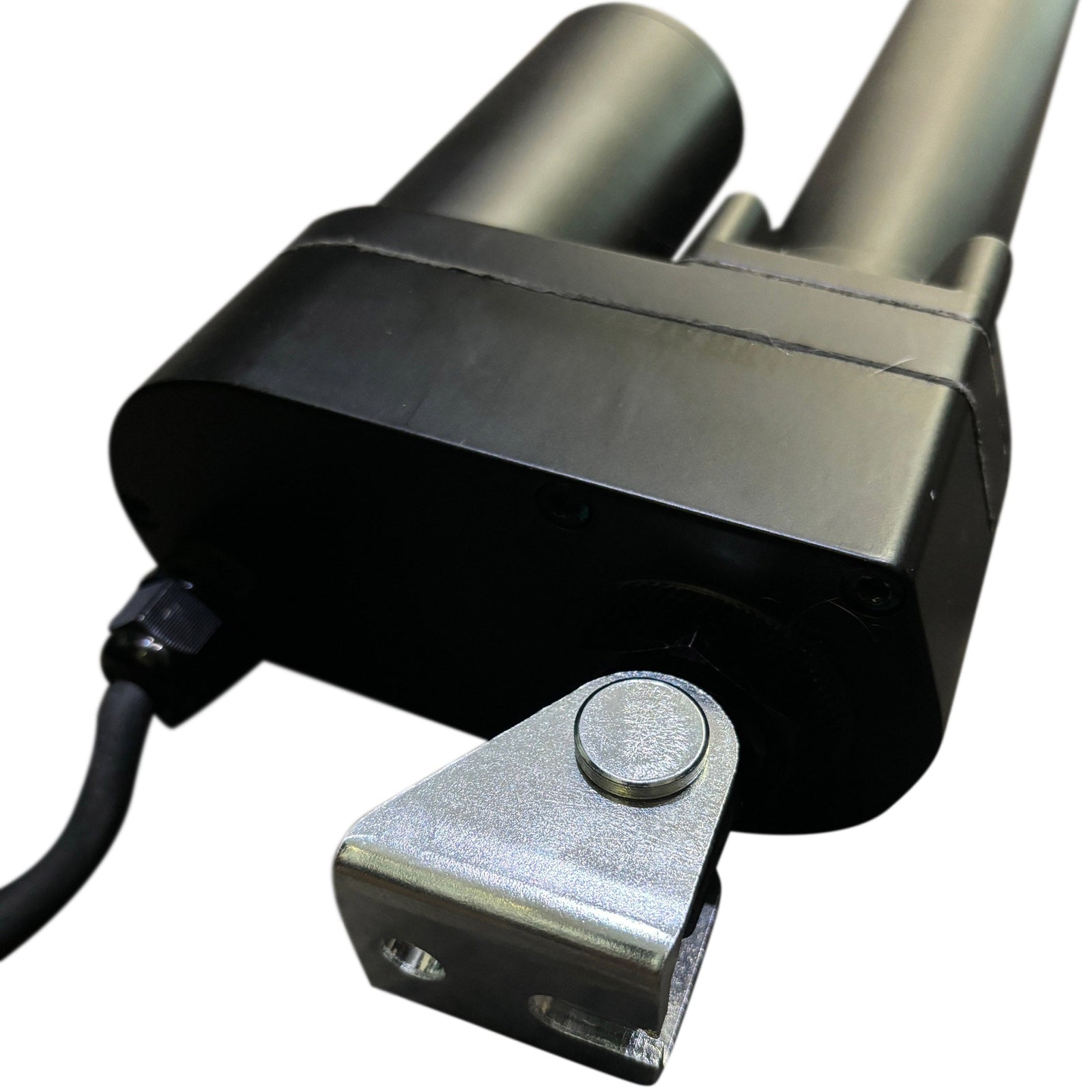

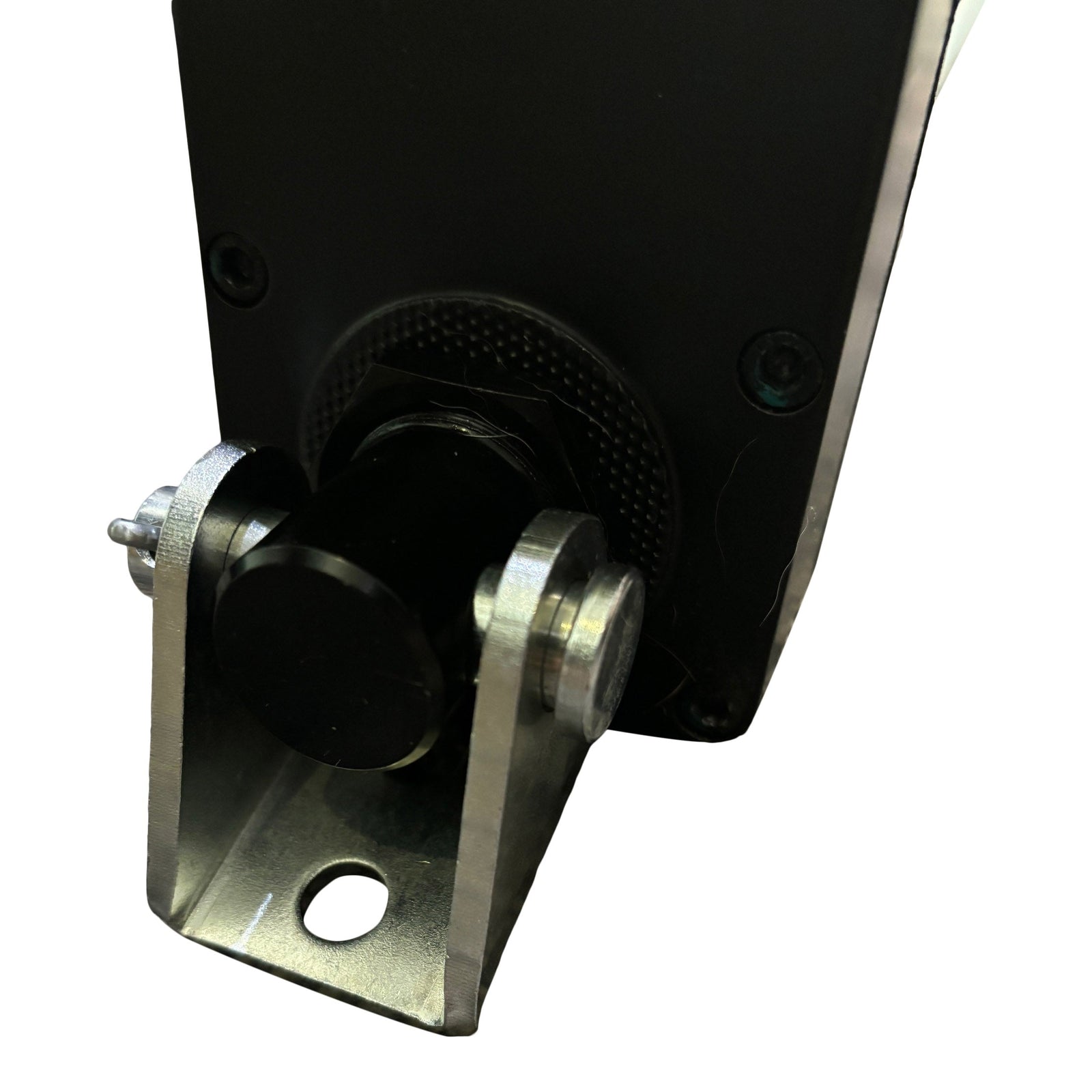

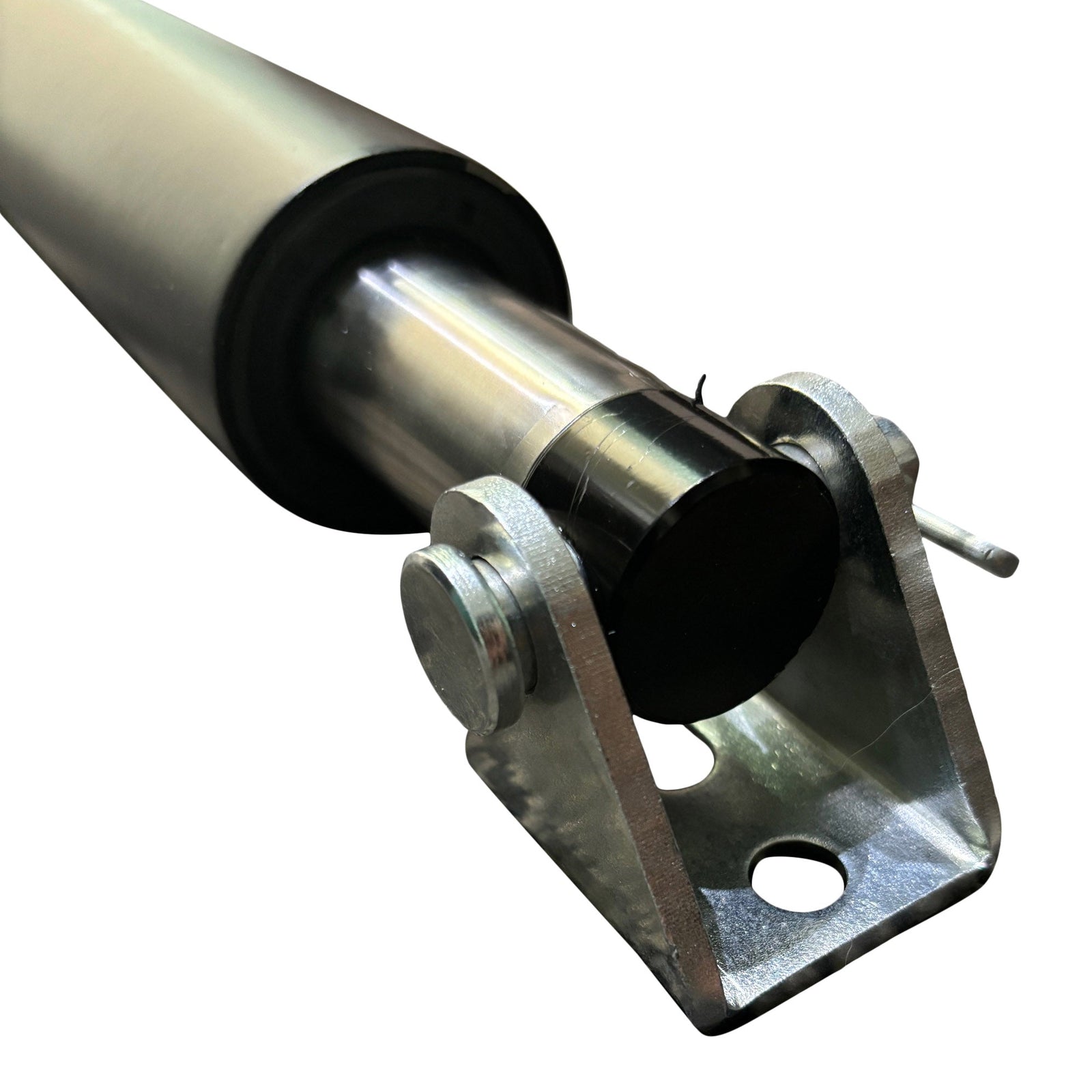

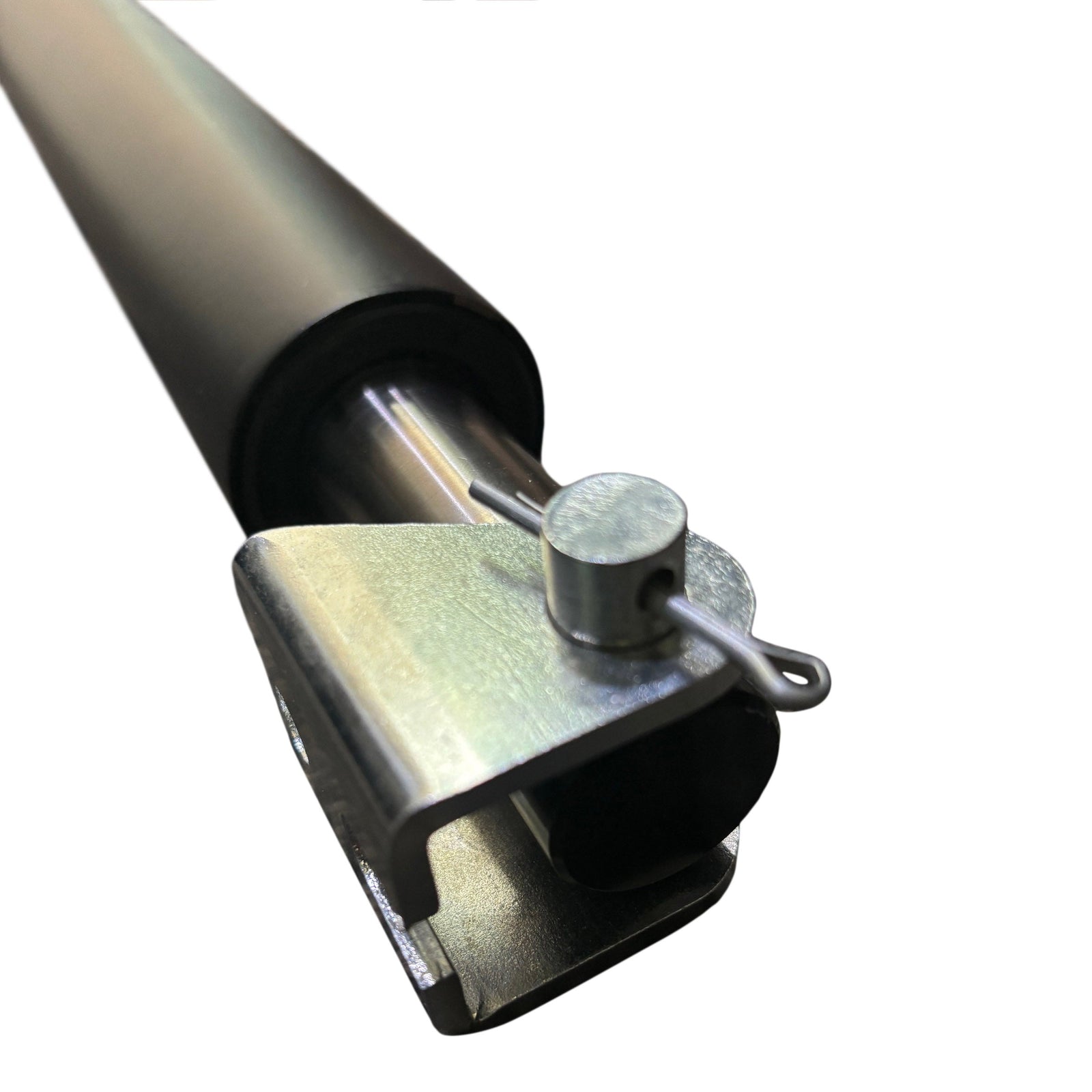

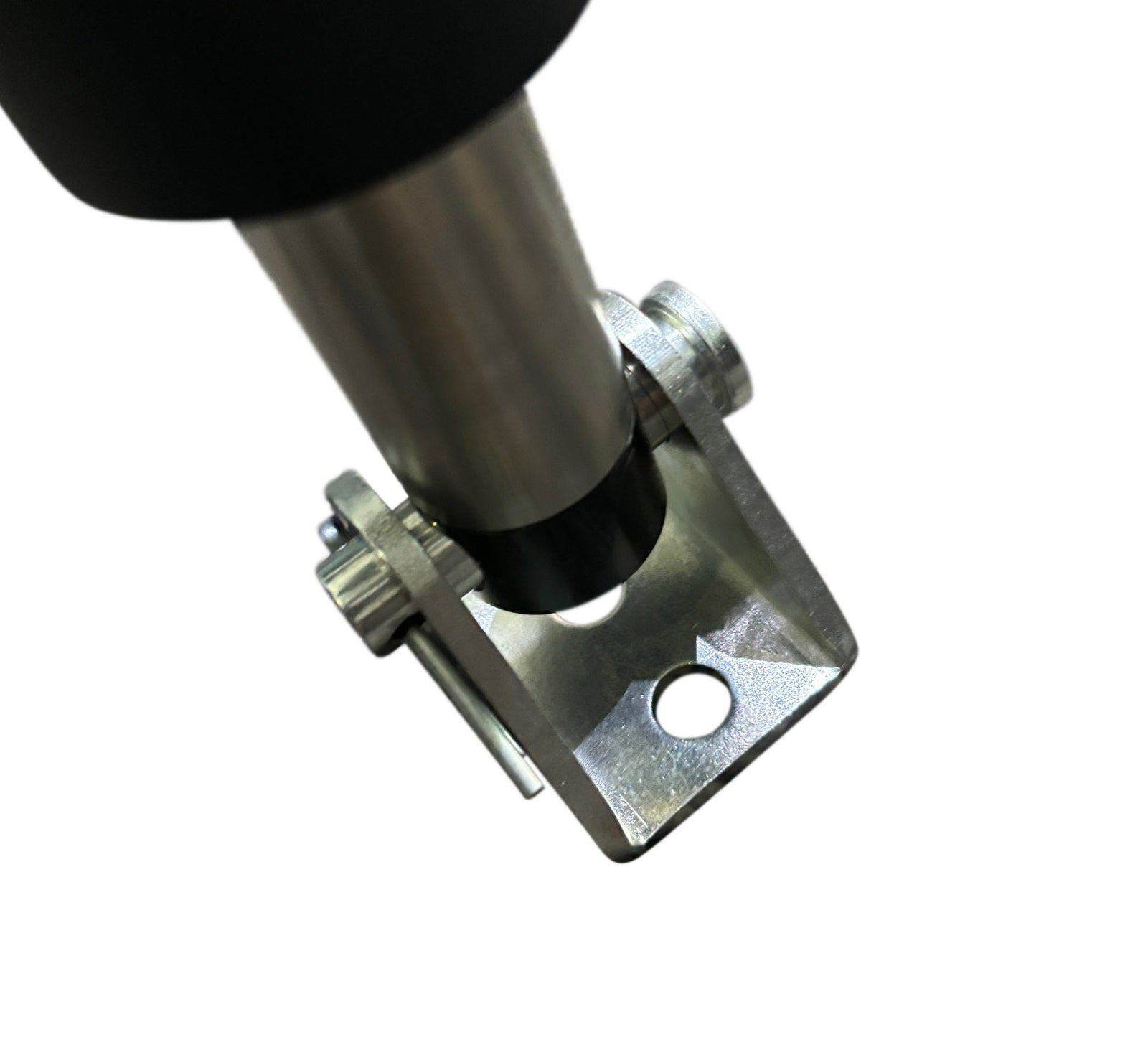

Mounting bracket for the FIRGELLI Industrial Linear Actuators and Power Max Actuators. Handles up to 4000 lbs. of force, which is more than enough for most applications.

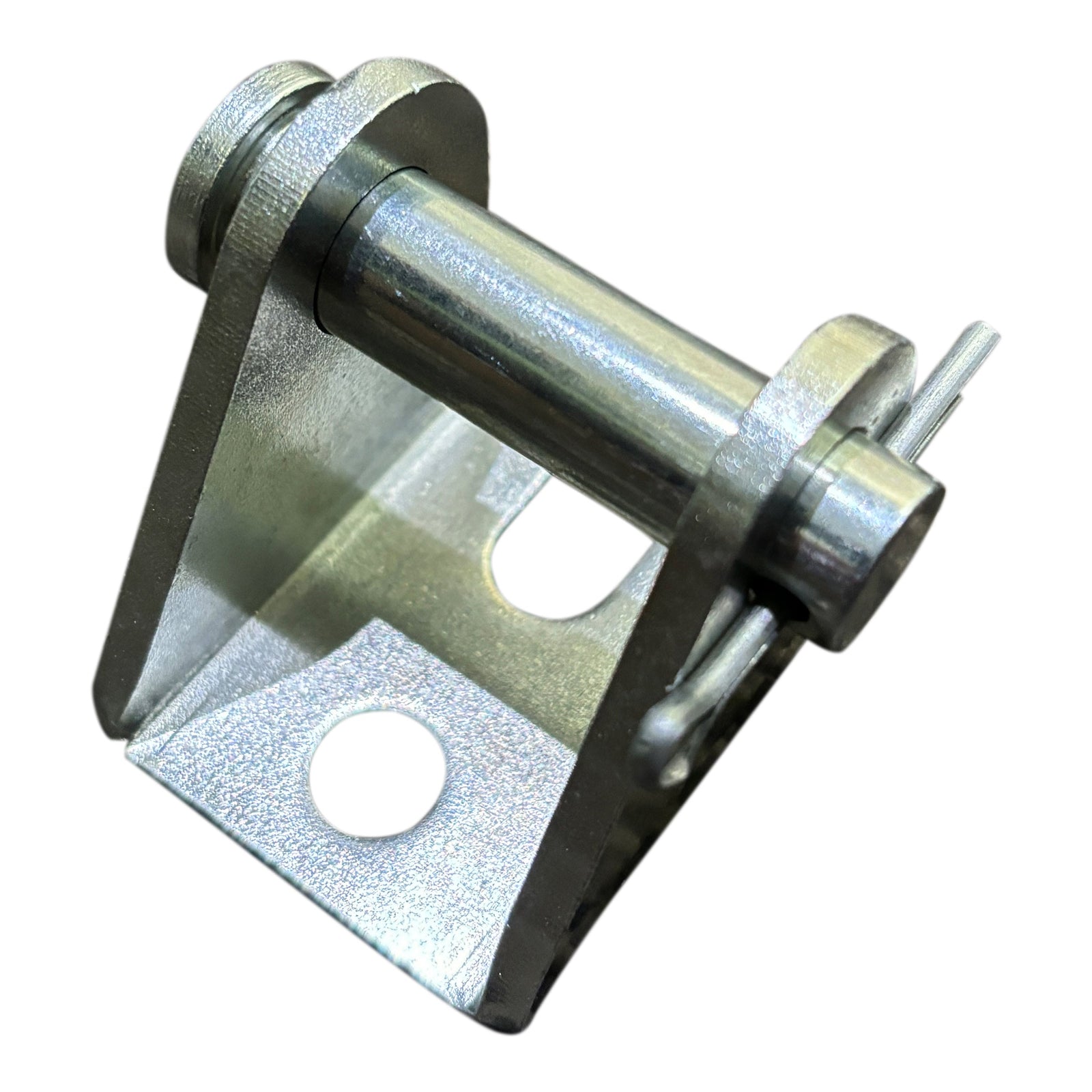

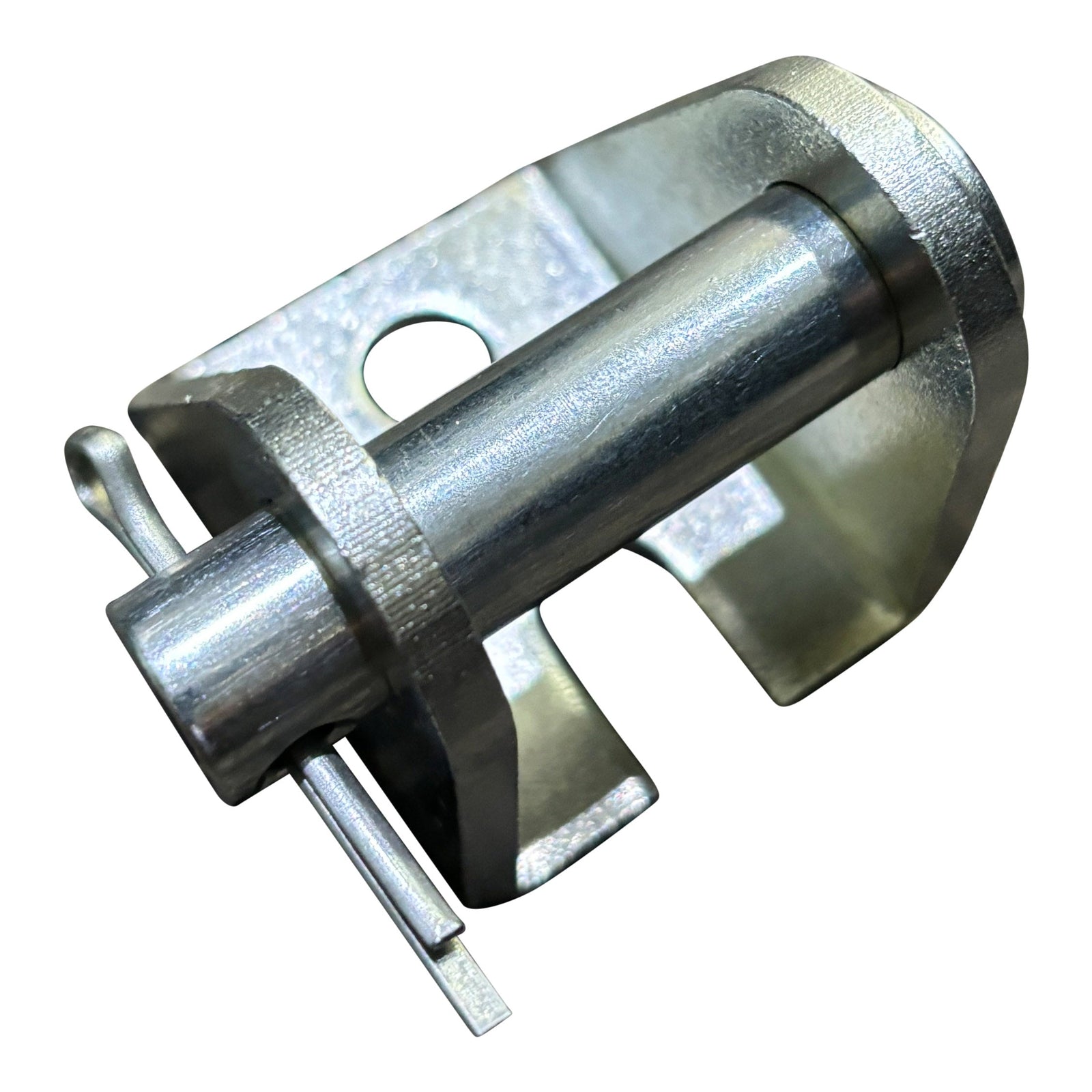

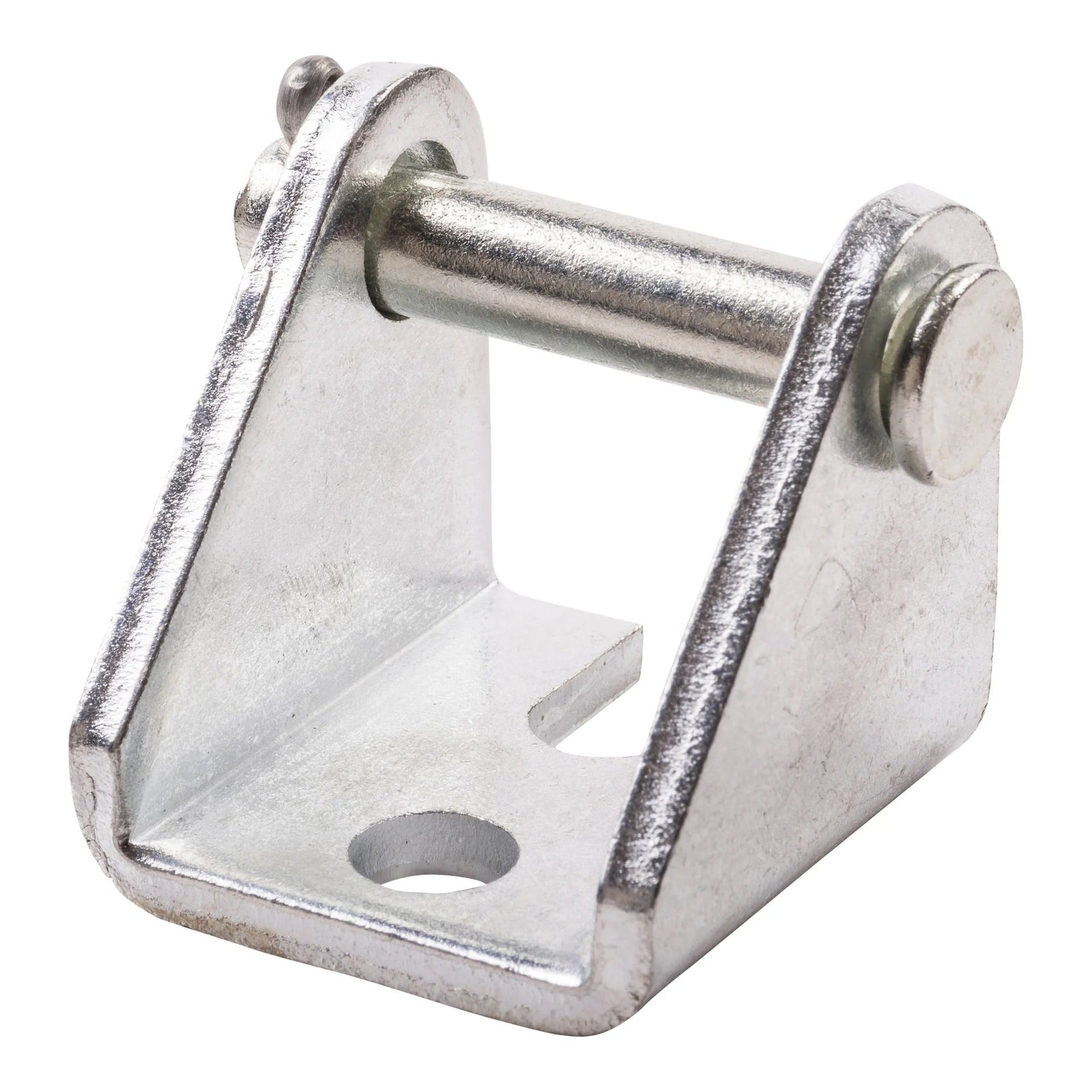

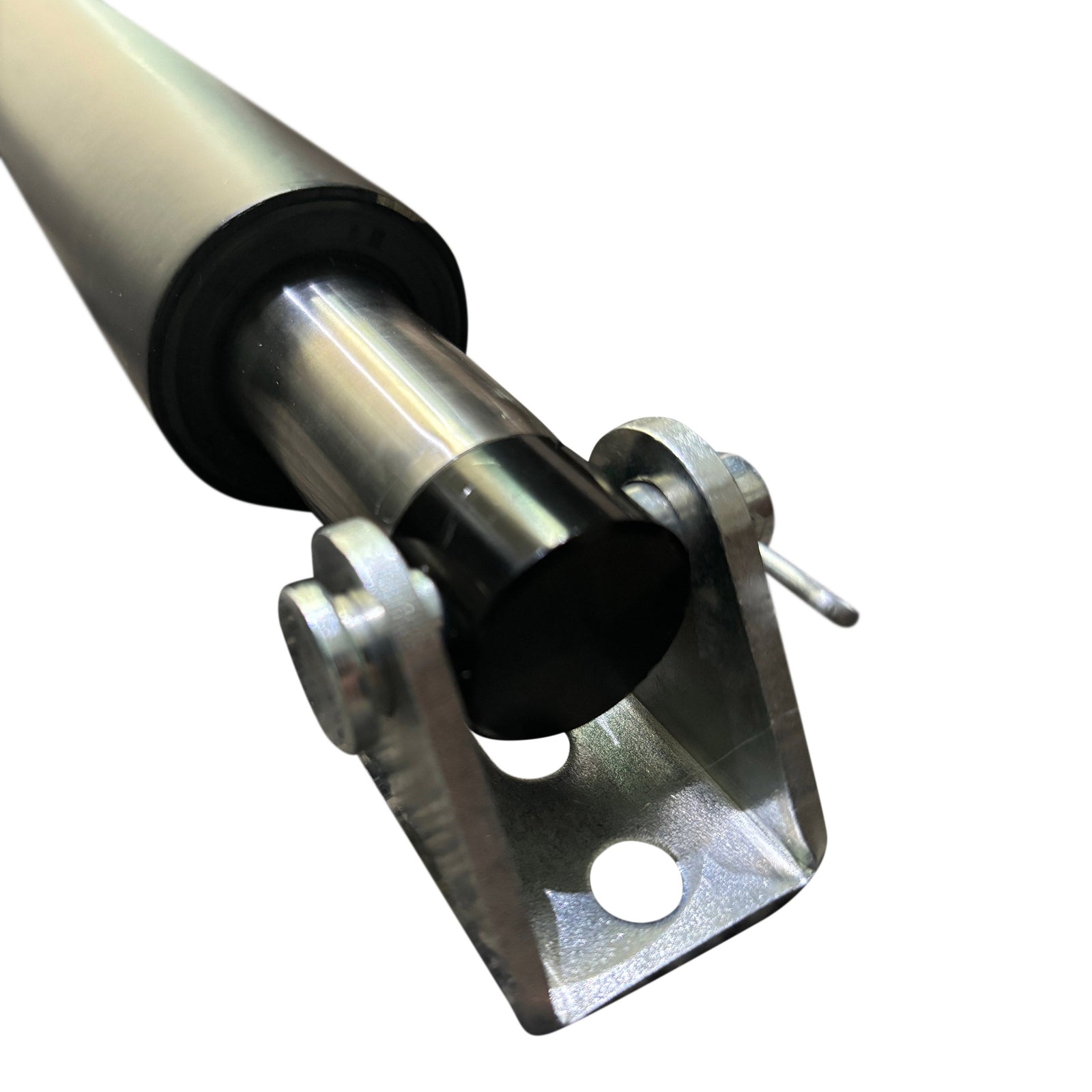

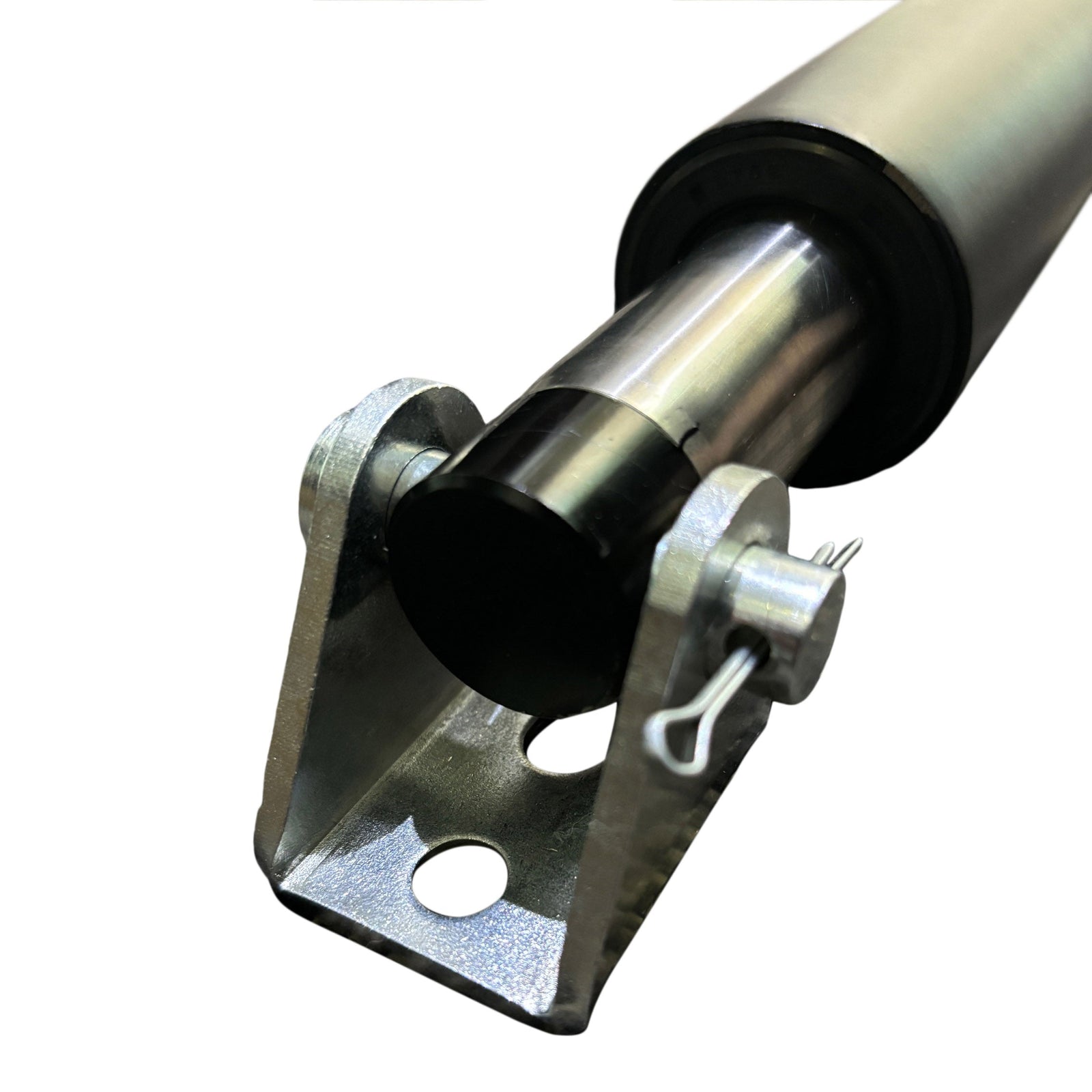

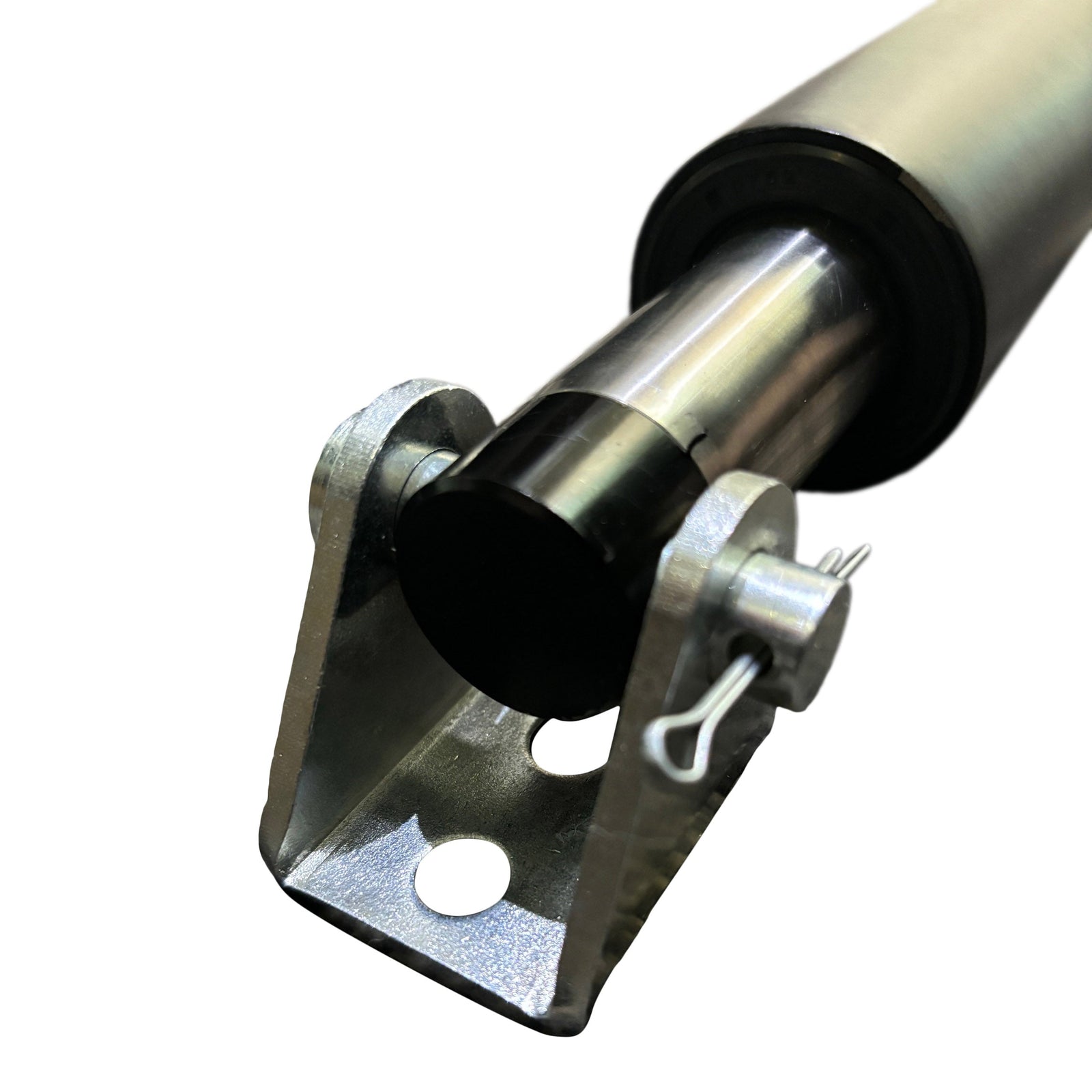

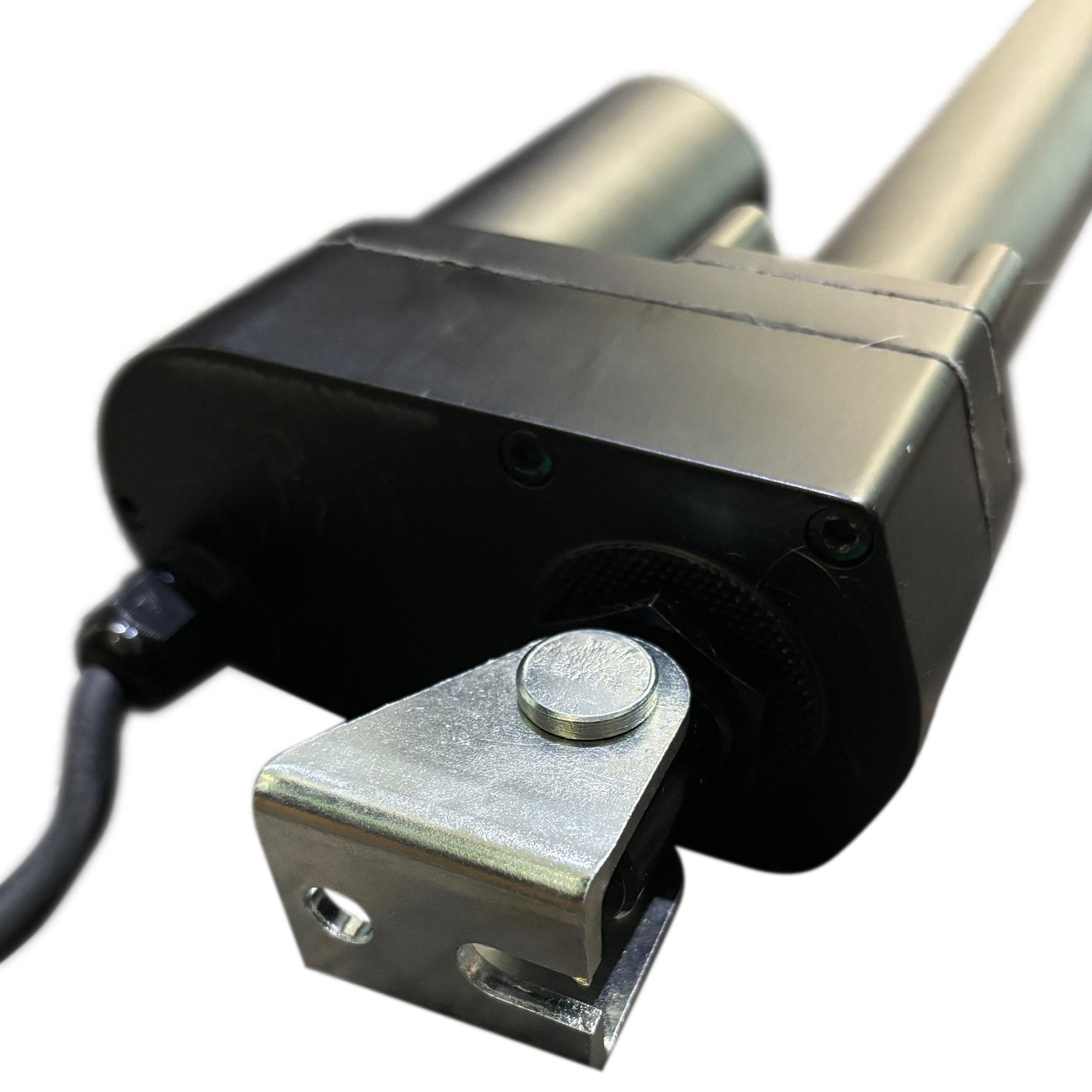

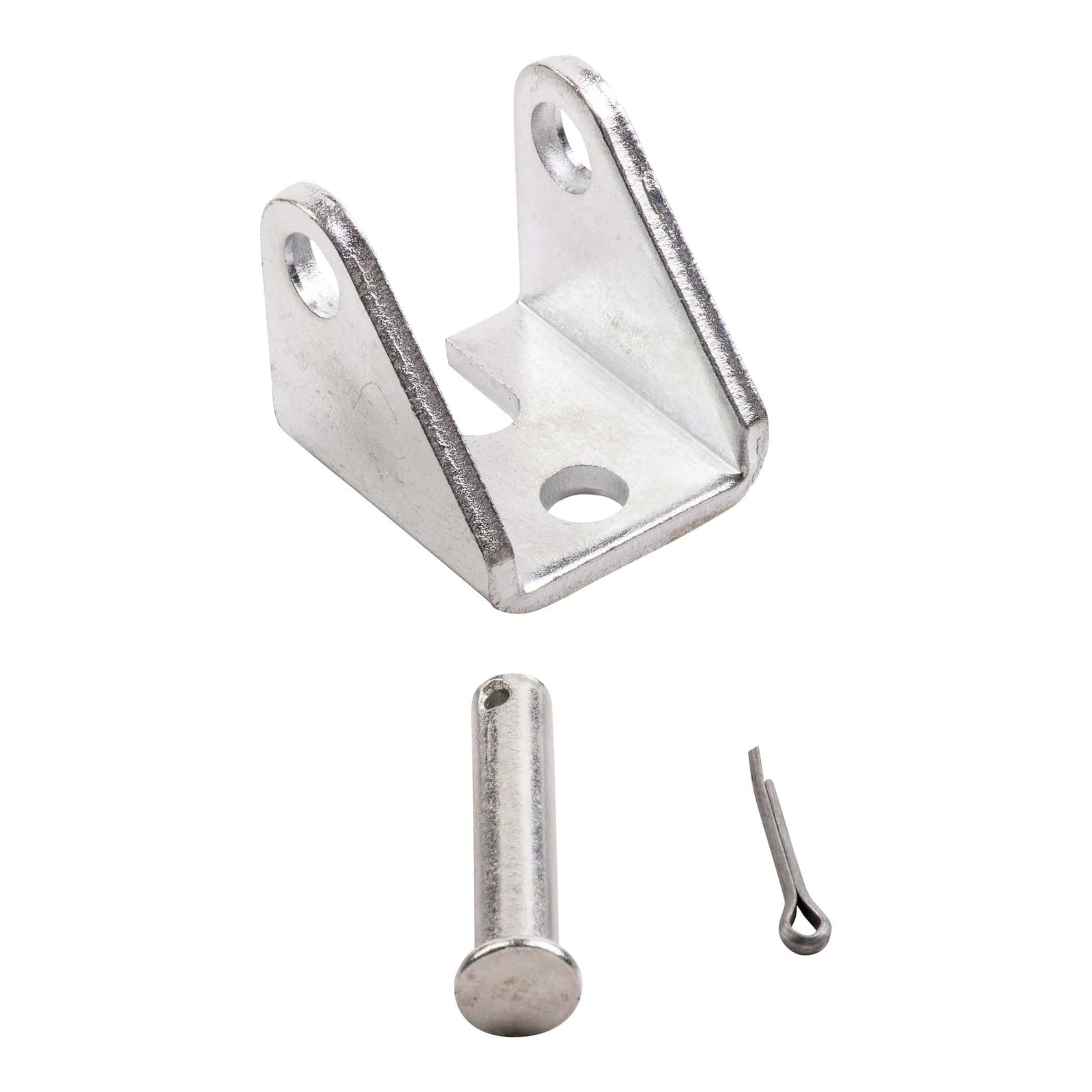

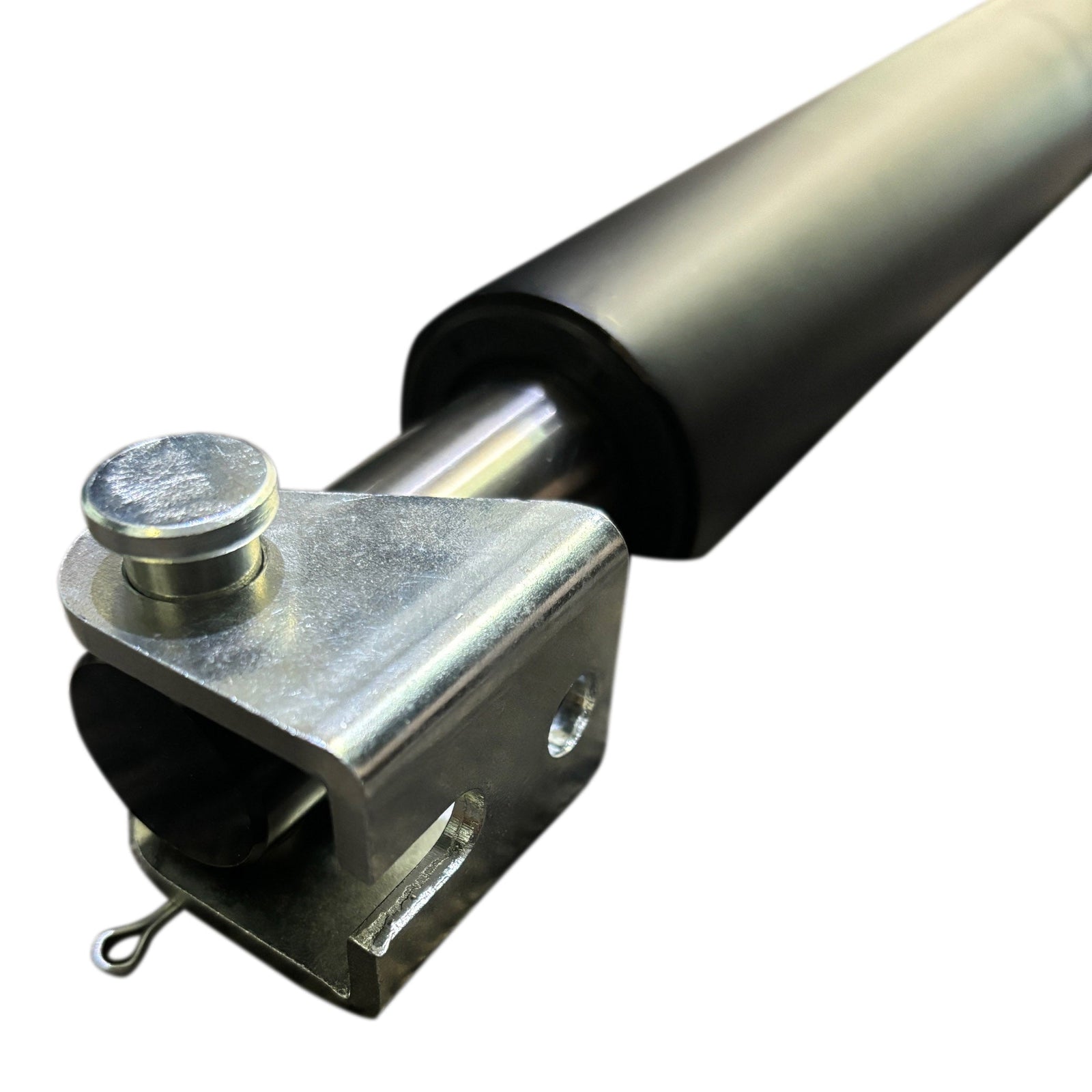

Featuring a clevis design with a pin for quick release, as well as an elongated mounting hole for easy adjustment. The chrome-plated steel bracket is ready to be fitted for quick installation. To keep the clevis pin in place, a cotter pin is included; however an R-Clip may also be used for regular quick release functionality. As with all clevis type brackets offered by FIRGELLI, actuators are able to rotate just over 180 degrees pivoting on the clevis pin. This articulation allows them to be used in a variety of 'hinged' applications, as well as opening and closing doors, lids, flaps rotating solar panels, actuating agricultural equipment, and much more.

Material: Hot Rolled Steel Q235B

Bracket Dimensions

3D Model Downloads

STEP File

• MB18 STEP

DWG File

• MB18 DWG
