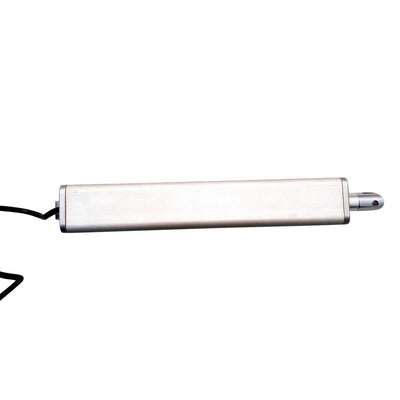

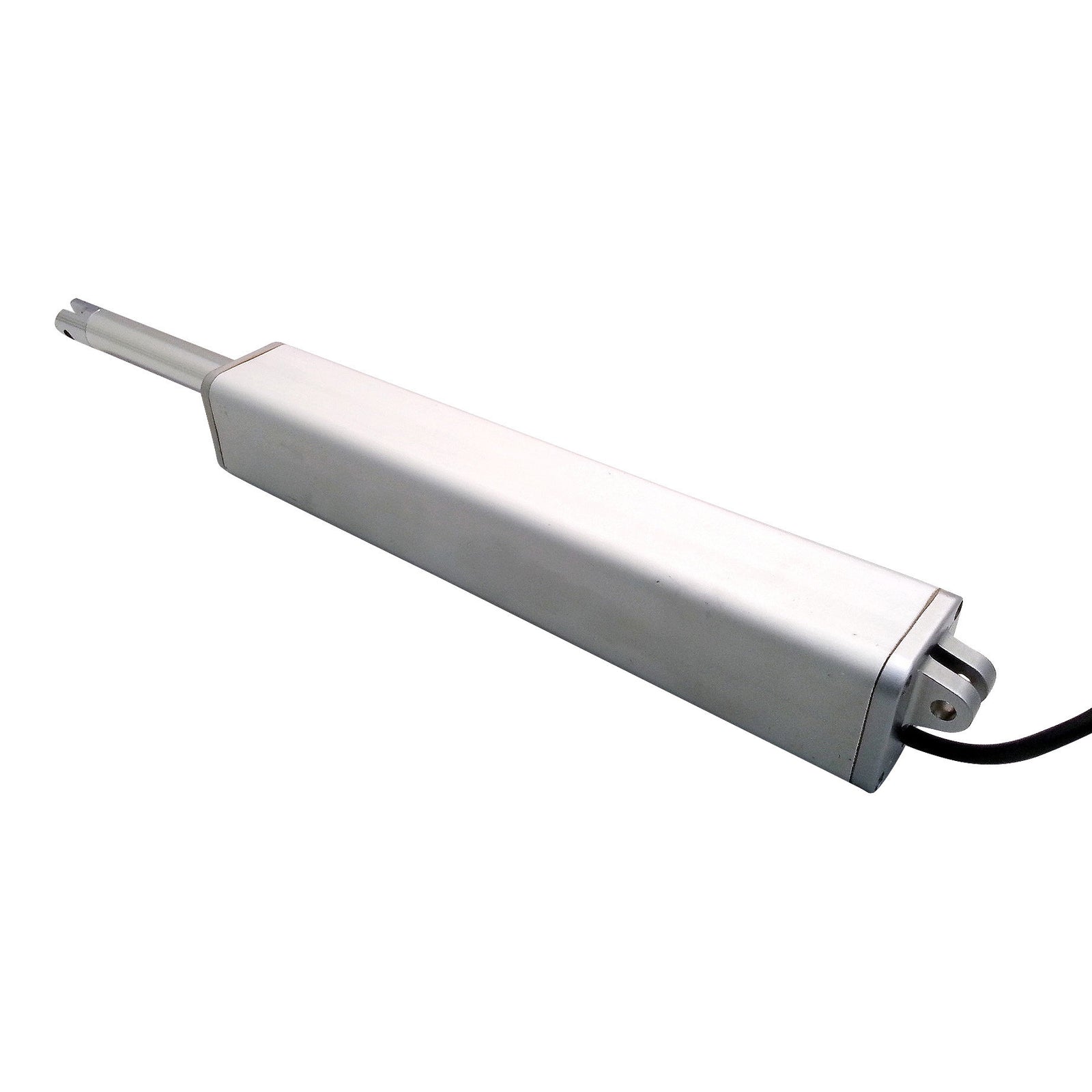

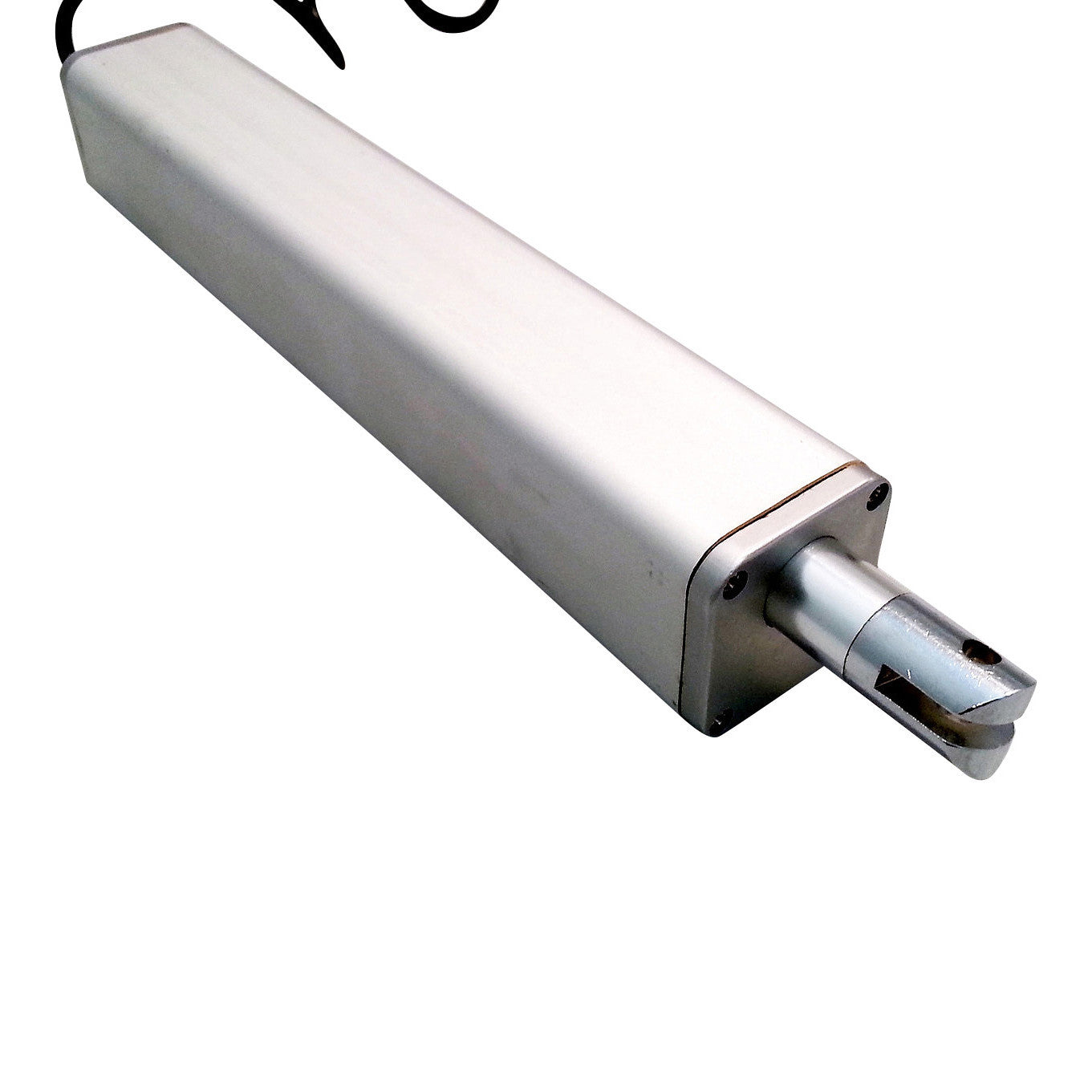

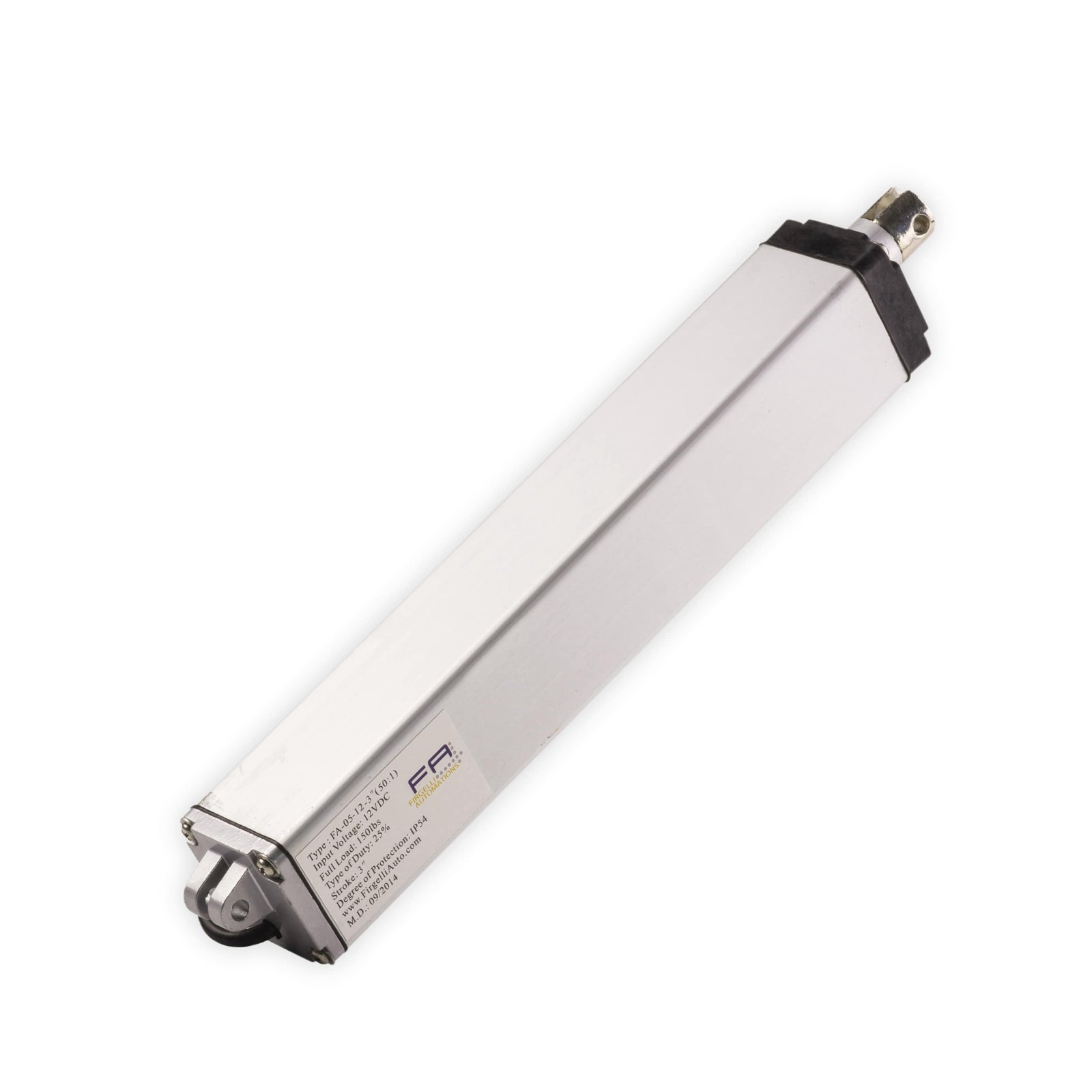

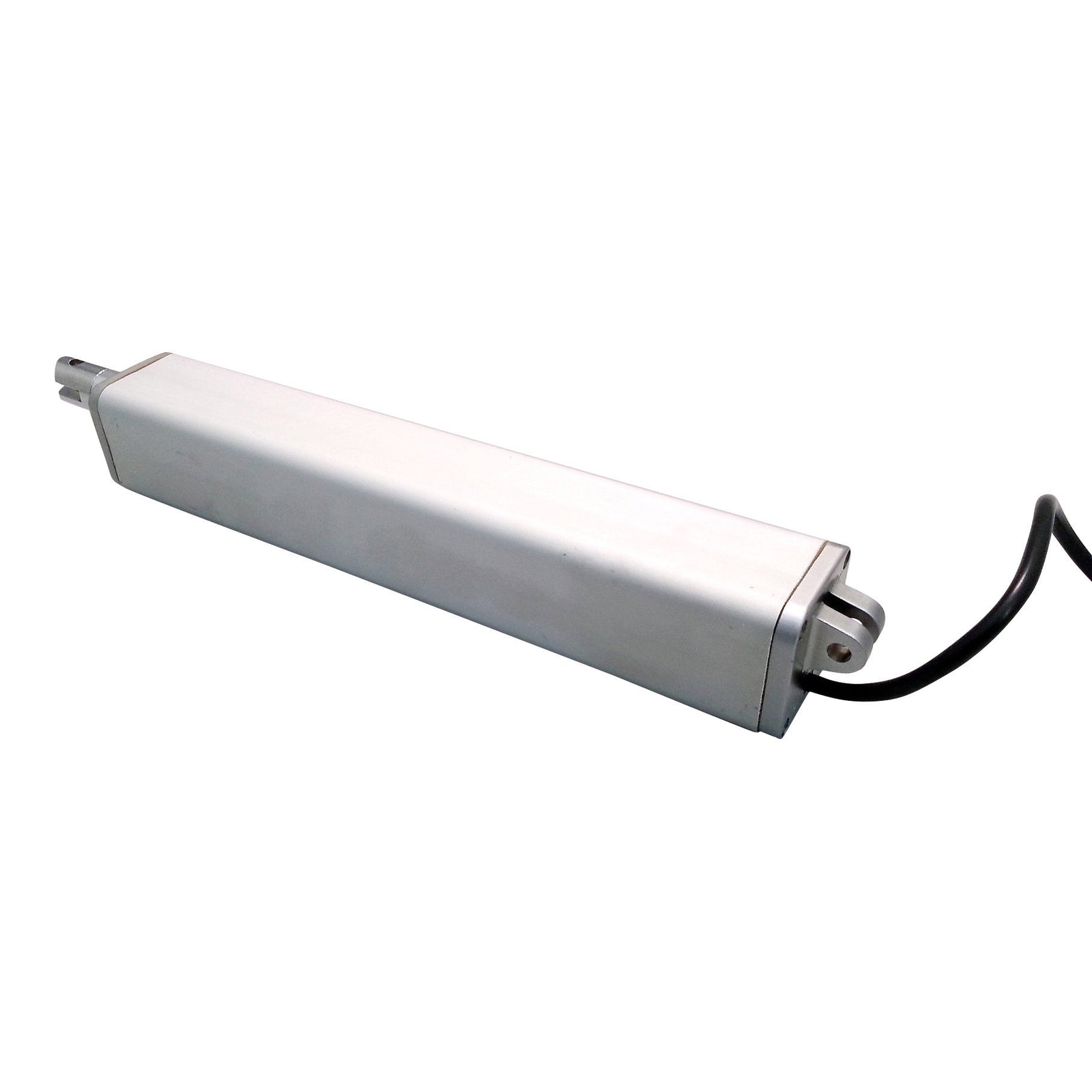

Sleek Rod Tubular Linear Actuators
Sleek Rod Tubular Linear Actuators
Description

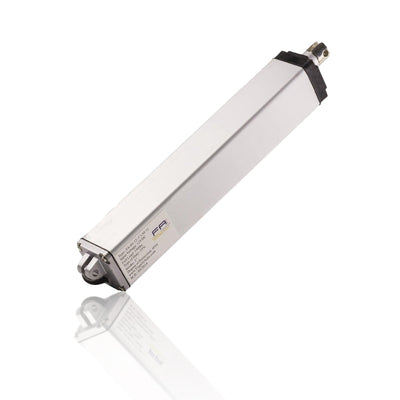

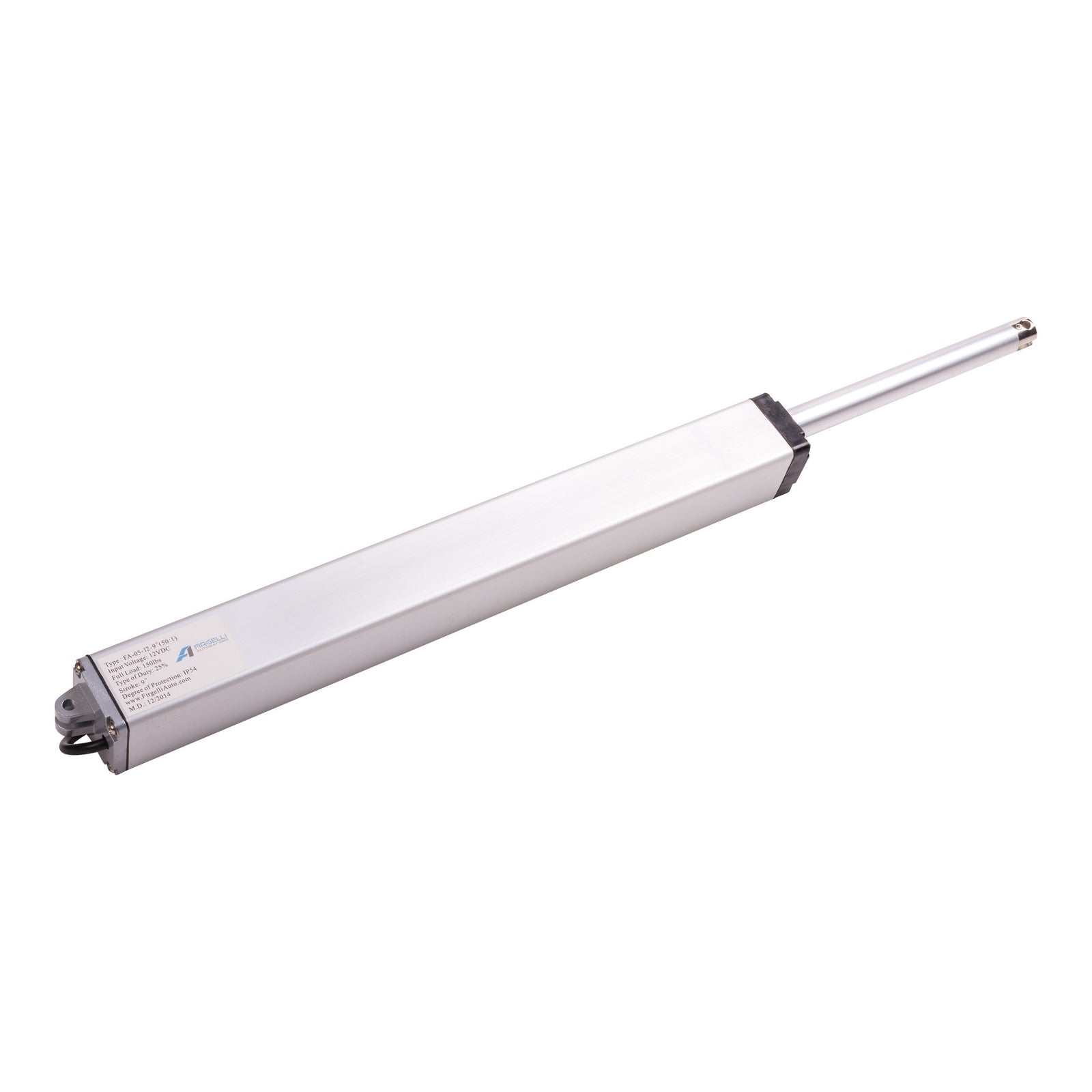

Sleek Rod Tubular Actuators with a long life span and high quality design are powered by 12V DC and are easy to install and designed to last.
Our Sleek Rod Actuator line was produced for those with applications which require a clean looking, modern appearance instead of having a hidden system. The minimalist presentation of these units and angular lines make this actuator line-up worthy as a showpiece itself.

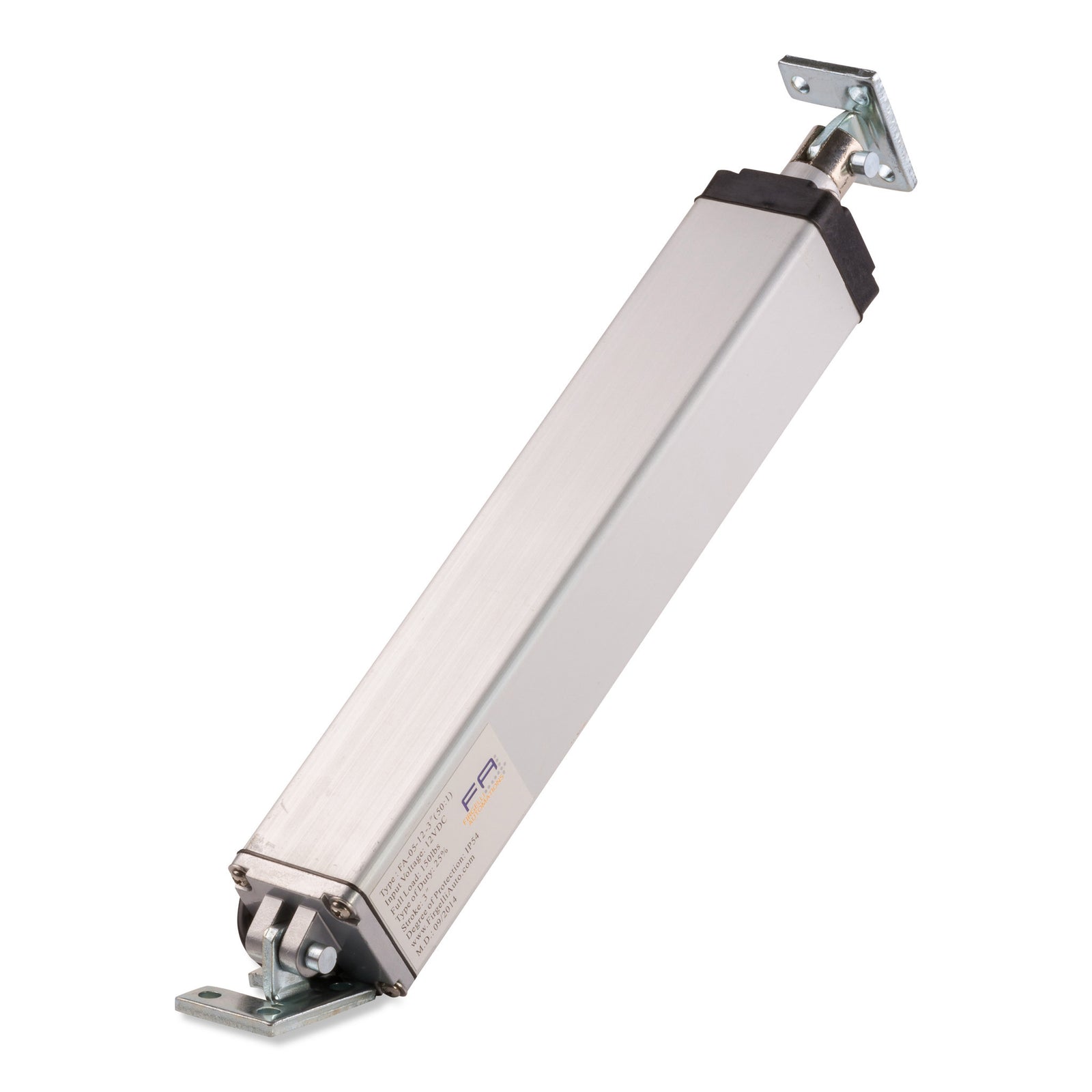

For those who want a good looking, high quality linear actuator to fulfill their project needs, this is the solution for you. All variations of the Sleek Road Actuator line feature built in factory limit switches, internal dynamic O-rings for water protection which provides an IP Rating of 54, as well as clevis mounting points at both ends for versatility. MB2 Mounting Brackets are used with these models.
Specifications
| Model | FA-05-12-XX |
| Dynamic Force | 150 lb. |
| Static Force | 300 lb. |
| Speed ("/S) | 0.5 |
| Draw at Full Load | 3 Amps |
| Duty Cycle | 20%, Max. 5 mins continuous use |
| IP Rating | 54 |
| Input | 12v DC |
| Feedback | None |
| Synchronous Capability | None, 5-10% variation in speed |
| Operational Temperature | -26°C/65°C (-15°F/150°) |
| Limit Switch | Built-in (factory preset) |
| Safety Certifications | CE, ROHS |
| Bracket(s) | MB2 |
| Cable Length | 1.5 feet |

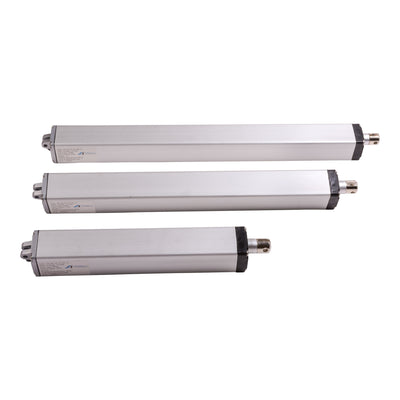

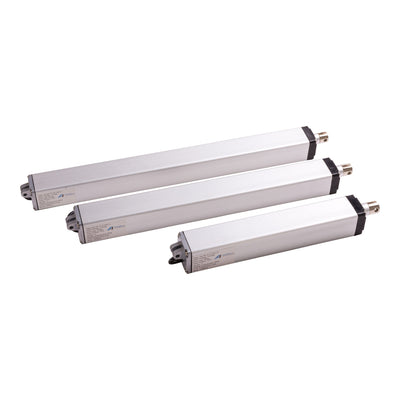

| Stroke | Retracted Length | Extended Length | Weight |
| 3" | 11.5" | 14.5" | 2.5 lbs |
| 6" | 14.5" | 20.5" | 2.9 lbs |
| 9" | 17.5" | 26.5" | 3.25 lbs |
| 12" | 20.5" | 32.5" | 3.7 lbs |
| 18" | 26.5" | 44.5" | 4.5 lbs |
| 24" | 32.5" | 56.5" | 5.3 lbs |
| 30" | 38.5" | 68.5" | 6.5 lbs |
Technical Drawings
Performance Graph
