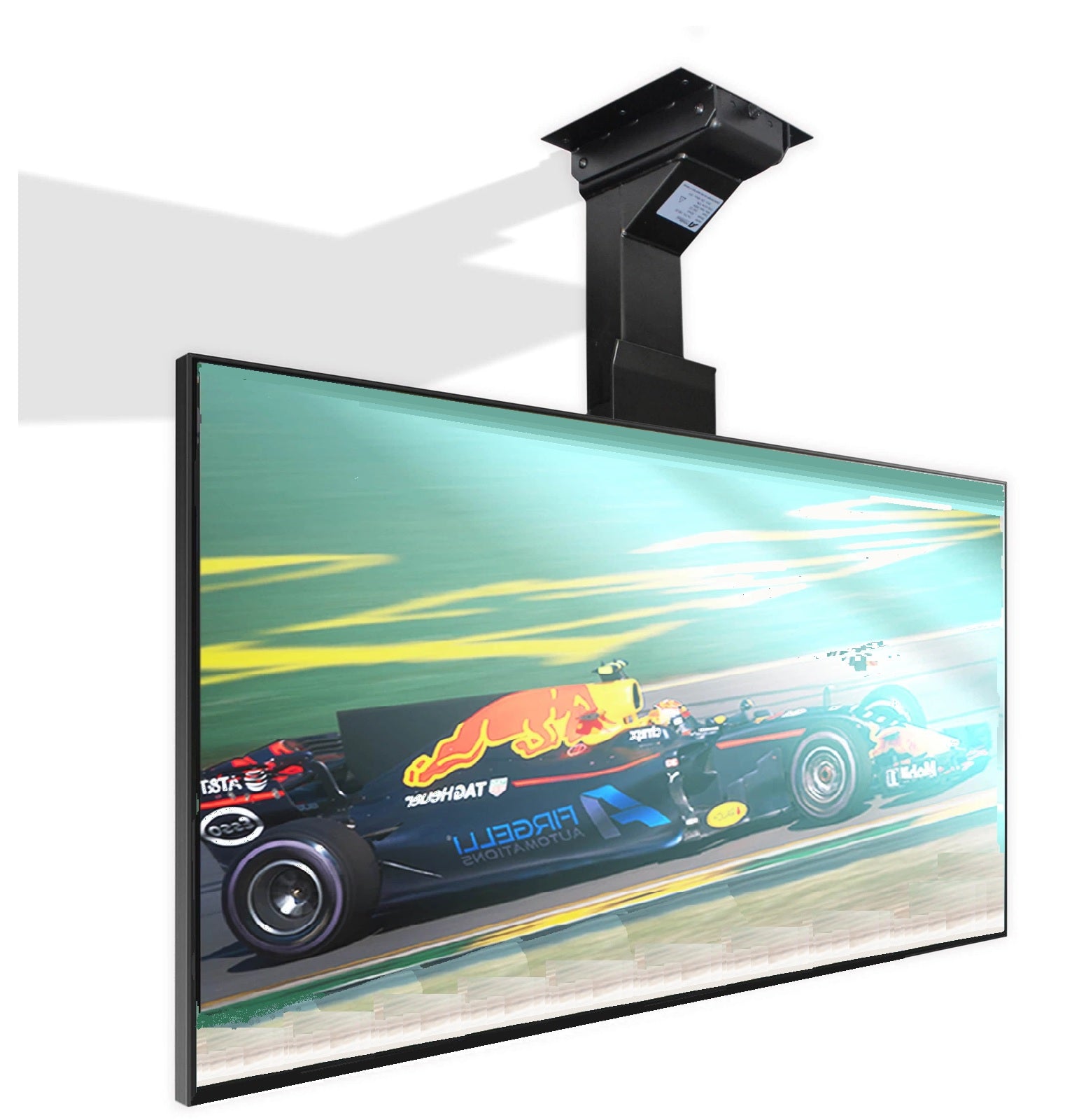

Drop Down TV Lift

      Drop Down TV Lift

      Model #
      qty limit cart limit
      Instruction Manual

      Our Drop Down TV Lifts are ideal for home automation projects where you want to hide your TV out of sight and still be able to watch at the push of a button.

      The Drop Down lift was designed, developed and tested.Our engineering team, focusing on the Firgelli core values of ease of operation, quality, and simplicity, managed to create a product which could lower small to obscenely large televisions from a ceiling in an elegant manner.

      Installation of such a mechanism would typically take hours of contemplation followed by drafting a complex design to incorporate the lift into a tight ceiling, however we challenged our team of experts to come up with a simpler way of doing this. The result is the Drop-Down lift offered today, which is slim enough in construction that it easily fits in tight attics and places where no other lifts can slip into.

      Keeping comfort in mind, the lift can be used at any time of day, via remote control, no matter its application due to its low noise rating of just 5 decibels over ambient noise levels.

      Echoing Firgelli Automations’ core values, all lift sizes that can be used to attach a piece of ceiling so that when the television is up and not in use, a person would walk by completely unaware that there was a television and lift unit right above their heads.

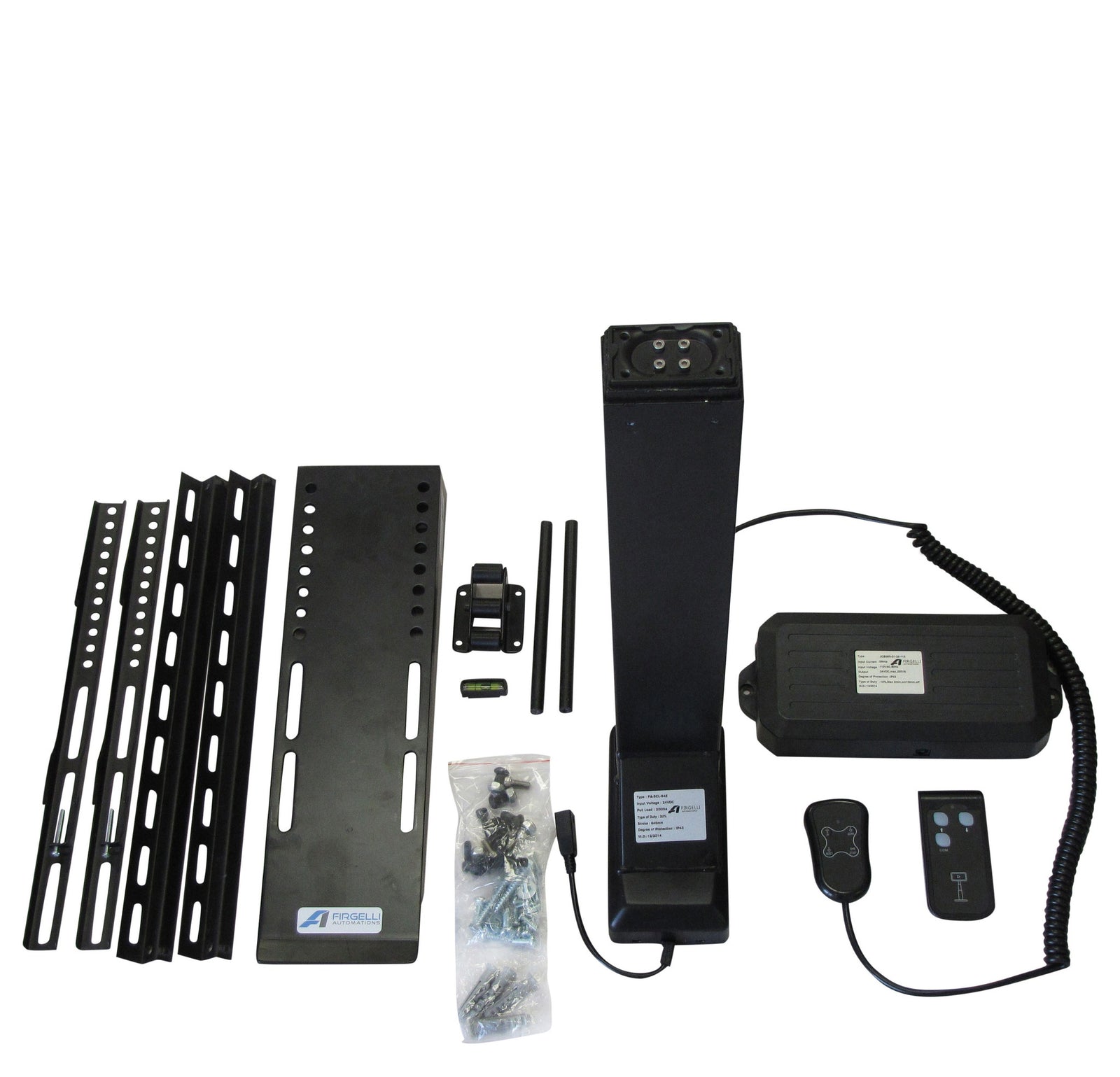

      Knowing that not all of our clients would be practiced in the trades, or in engineering, we ensured that all of our lift products come with easy to read and follow instruction manuals. Covered in the manuals is everything from un-boxing your new Drop-Down unit, to installation and operation.

      Features and Benefits
      • 135 lbs. Total lift capacity - Can lift any size TV

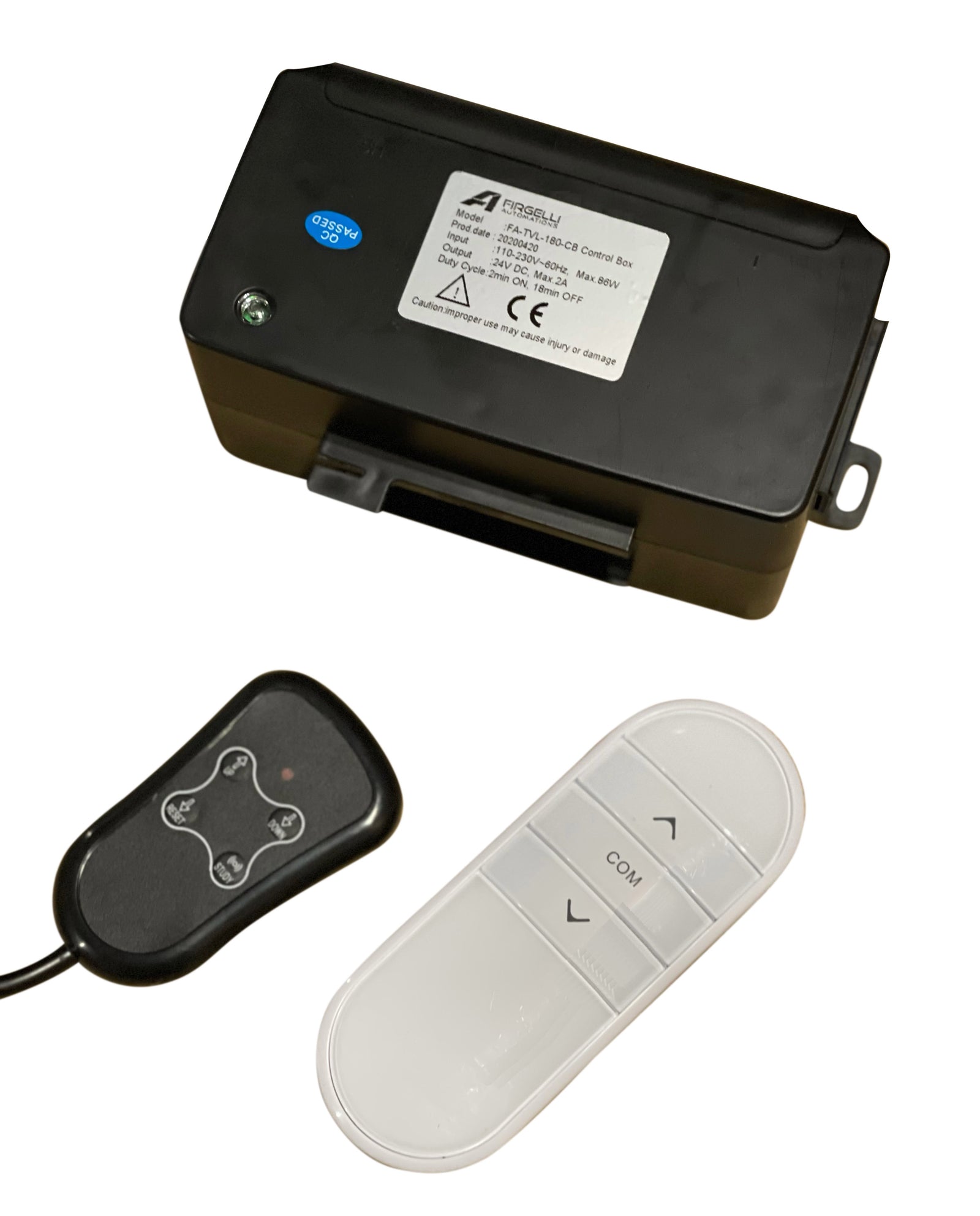

      • Comes with wireless RF and wired remotes - No excuse for loosing a remote now.
      • Internal limit switches automatically shuts off the unit at the end of stroke - This protects you and your equipment from possible damage.
      • Programmable memory - Allows you to control exactly where you want the TV to stop every time, automatically.
      • Lifts any TV Size from 20 inch to 80 inch or up to 135 lbs weight - Gives you more flexibility.
      • Stroke travels 25inch, 30 inch, 36 inch or 39 inch  - You select the size based on your TV size, or however far you want the TV to pop-up into view.
      • Mount your PVR/DVD player etc to the mounting bars - Included.

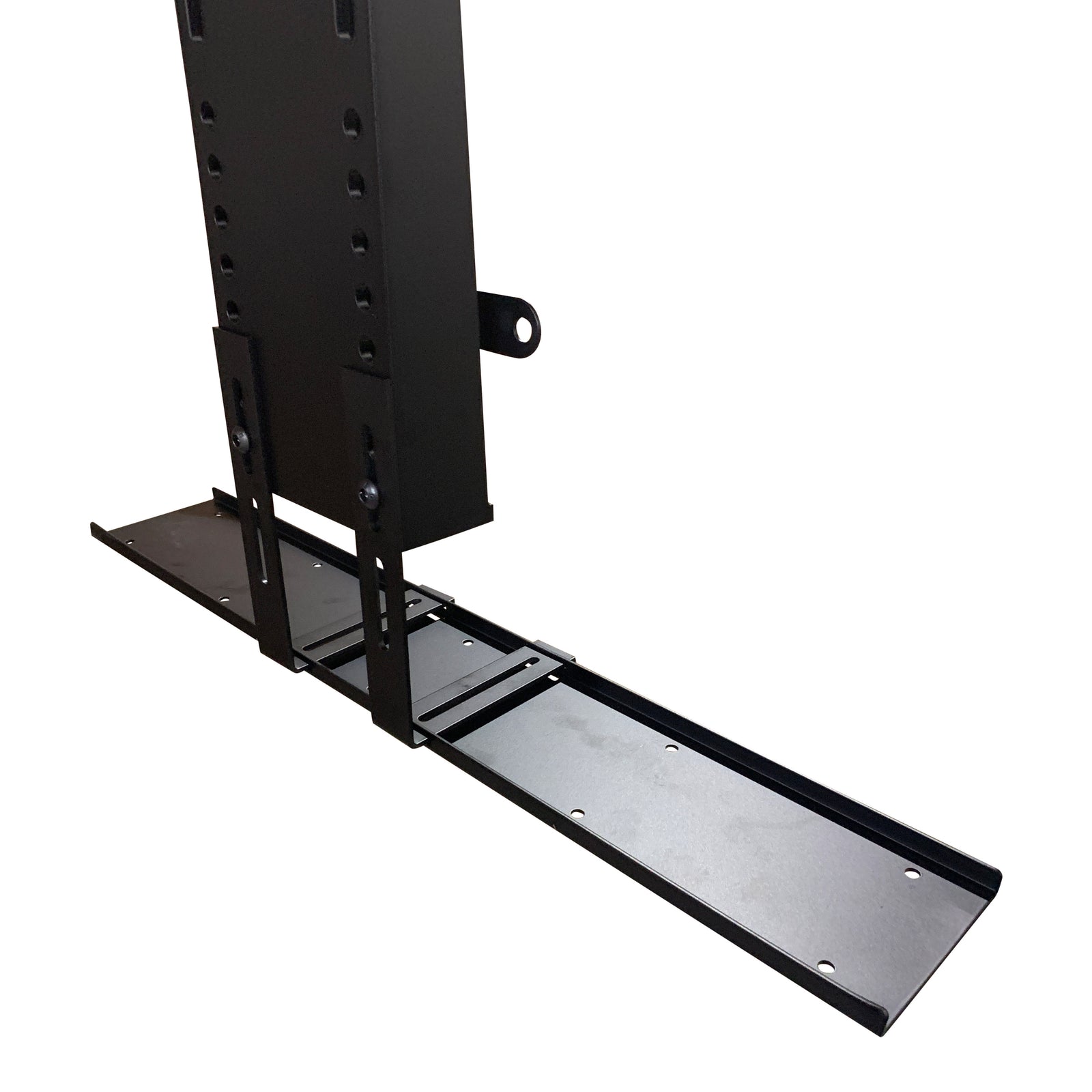

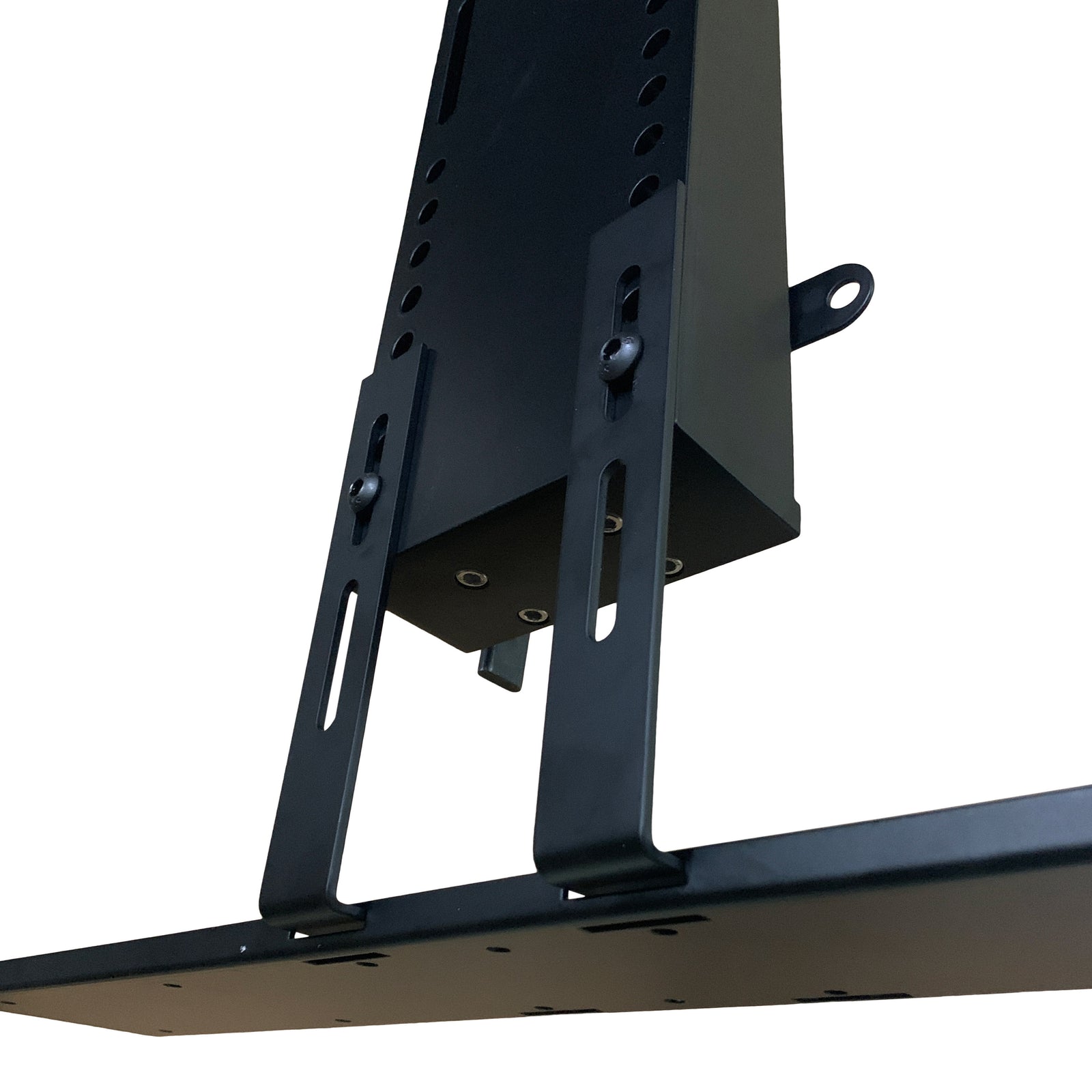

      • Cabinet Lid mounting Plate included - mount the top of the cabinet or Drywall plate to this bracket to make the TV invisible.

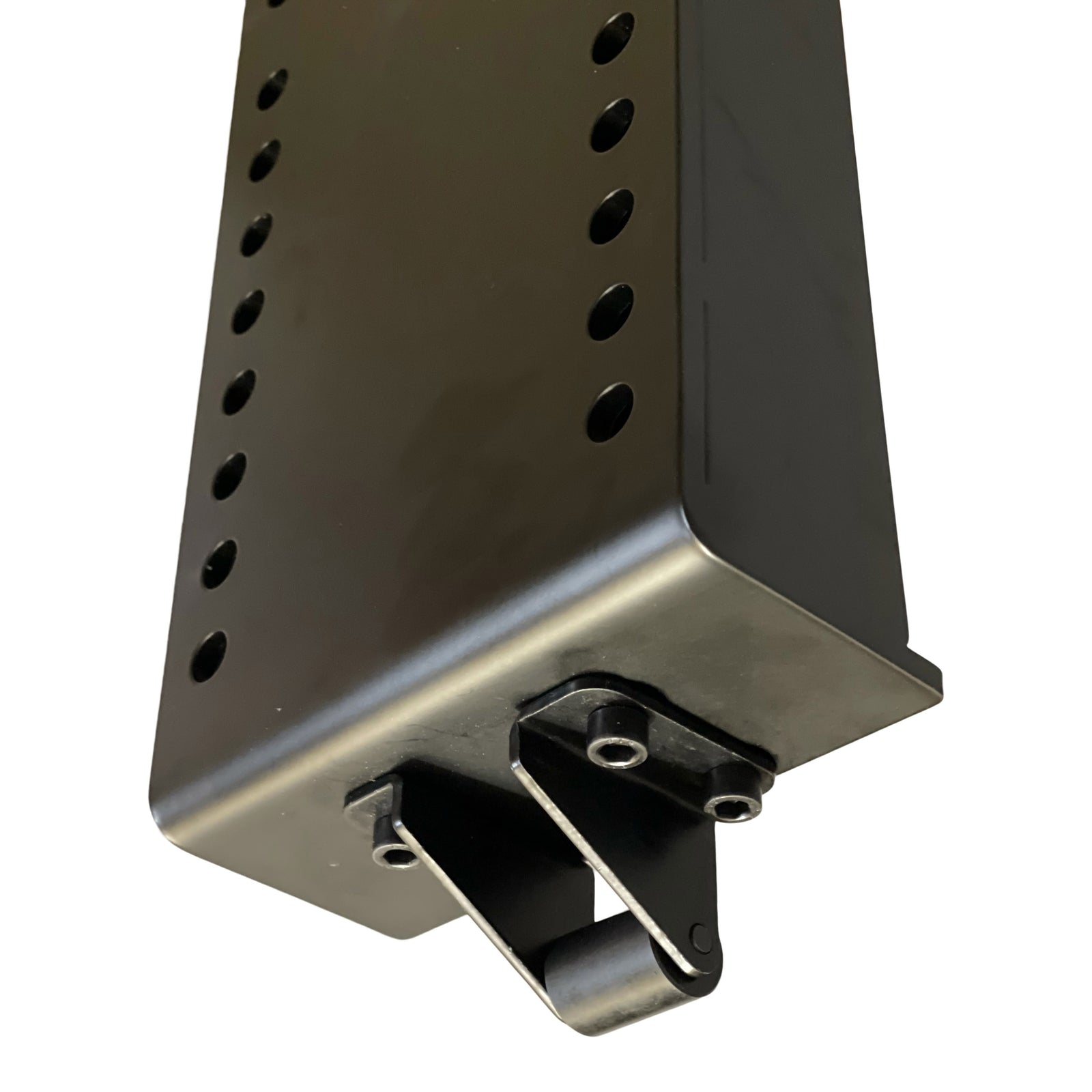

      • For flip up cabinet lid style use the included Roller top fixture. This is where the lid of the cabinet is Hinged at the back of the Cabinet and the Roller top fixture simply rolls the lid up and back.

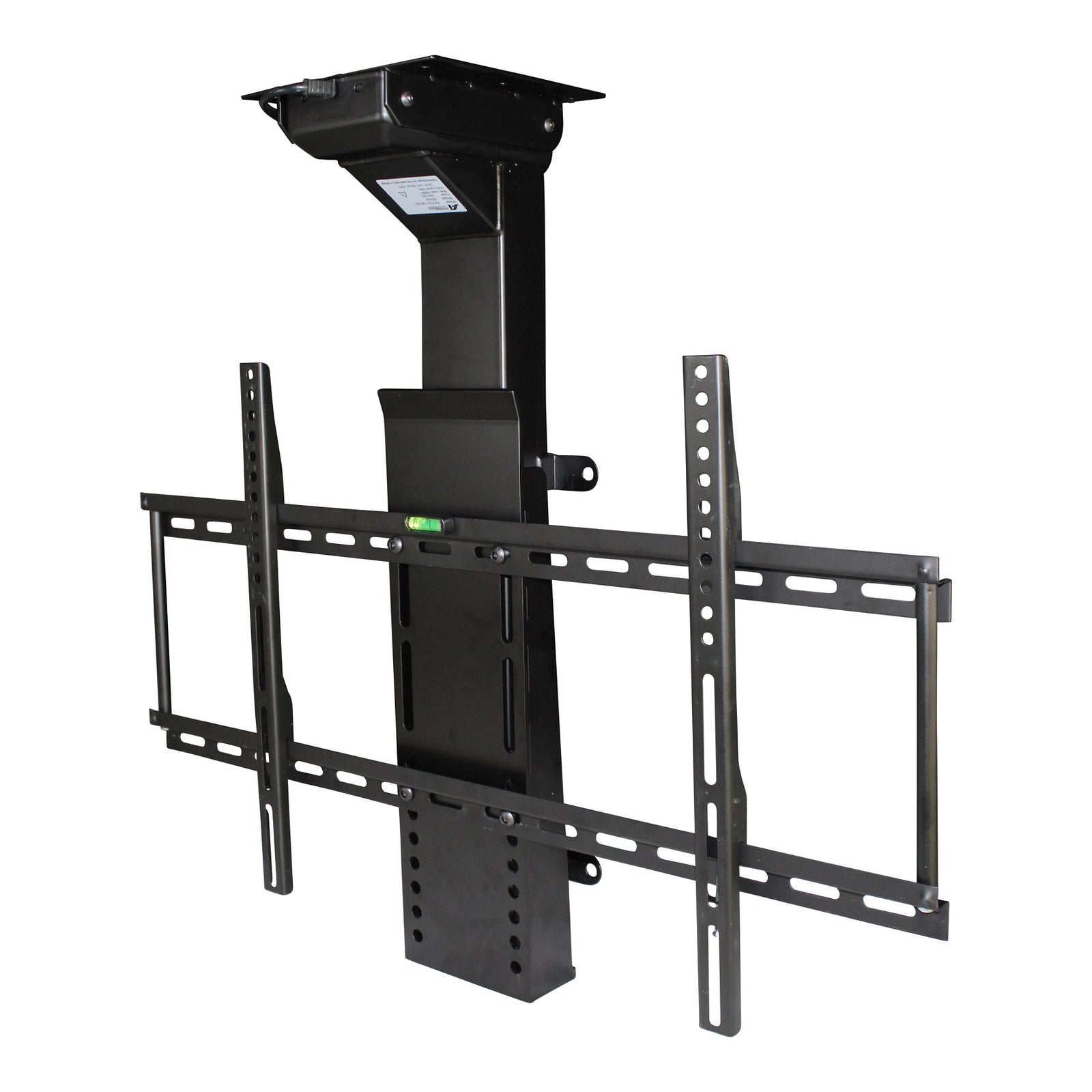

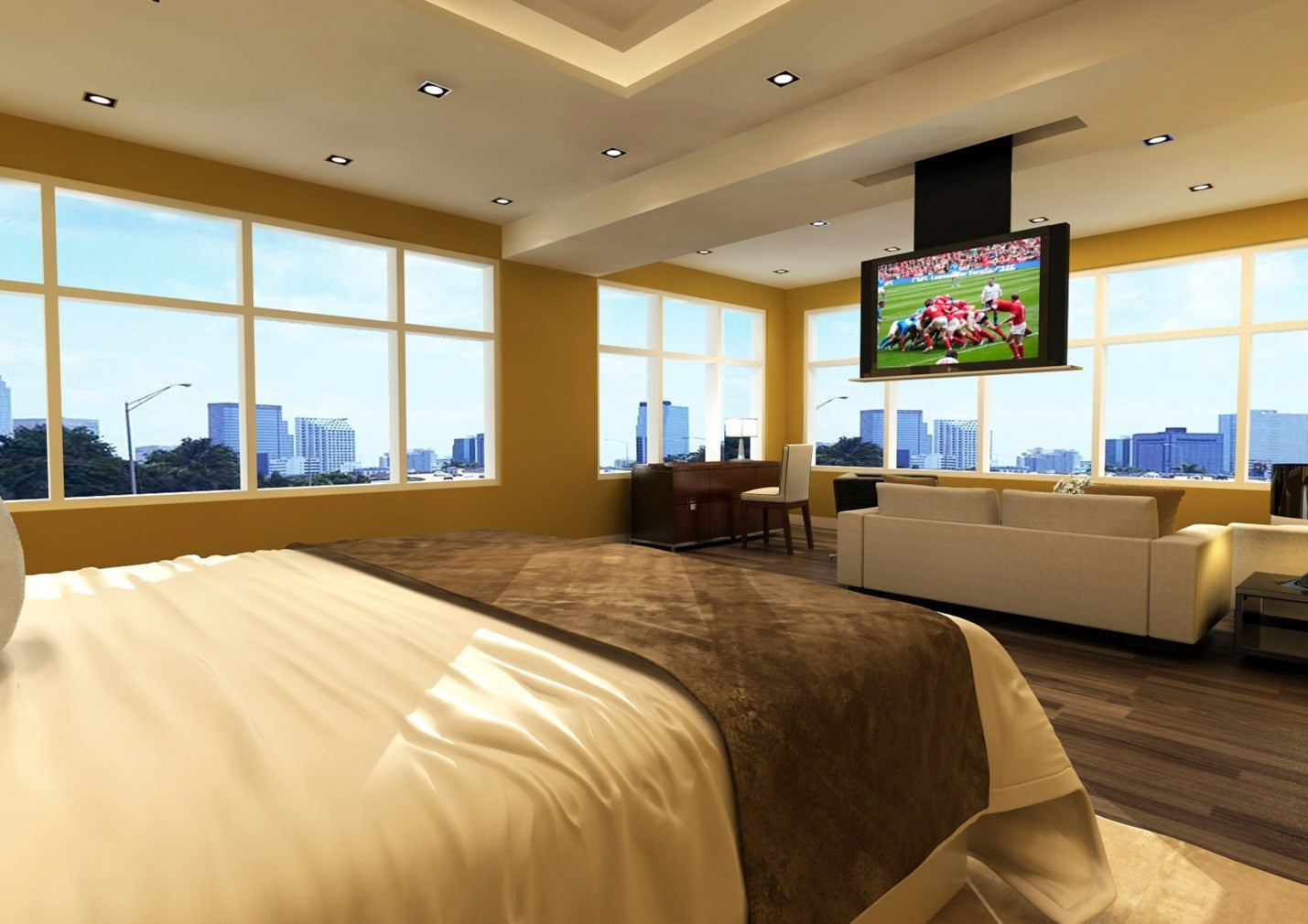

      • Can be used upside down to drop a TV lift from the ceiling
      • CE and RoHS certified - for extra comfort knowing they are certified for safe use.
      • No exposed chains tracks gears or Scissors - Watch the product video you cannot even see the mechanism when installed.
      • Extra quiet, uses a worm gear drive system commonly known as the quieting system in the Industry - Runs at only 5-dB above Ambient
      • No Professional Installation required - No need to hire an expert, if your capable of installing a TV Wall bracket then your qualified to install these TV Lifts.

      To Download the Instructions manual click here

      Model FA-TVL-180-25 FA-TVL-180-30 FA-TVL-180-36 FA-TVL-180-40
      Stroke 648mm 762mm 914mm 1000mm
      Retracted Length 558mm 610mm 720mm 810mm
      Extended Length 1219mm 1372mm 1635mm 1800mm
      TV Sizes 635mm (25”) – 1524mm (60”)
      Input Voltage 230 VAC
      Force 130 lbs.
      Lifting Speed 22mm / second (with load)
      Duty Cycle 10%, max 2 min. continuous use
      Operating Temperature +5° C - +40° C
      Overload Protection Built-In
      Material Powder Coated Steel
      Additional Feature Adjustable Height
      Technical Drawings

      To download the instruction manual for the FA-TVL-180 TV Lift, click here.
