Rocker Switches for Linear Actuators

      Rocker Switches for Linear Actuators

      AUD
      Model #
      Type
      Quantity
      qty limit cart limit

      Get shipping estimates

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

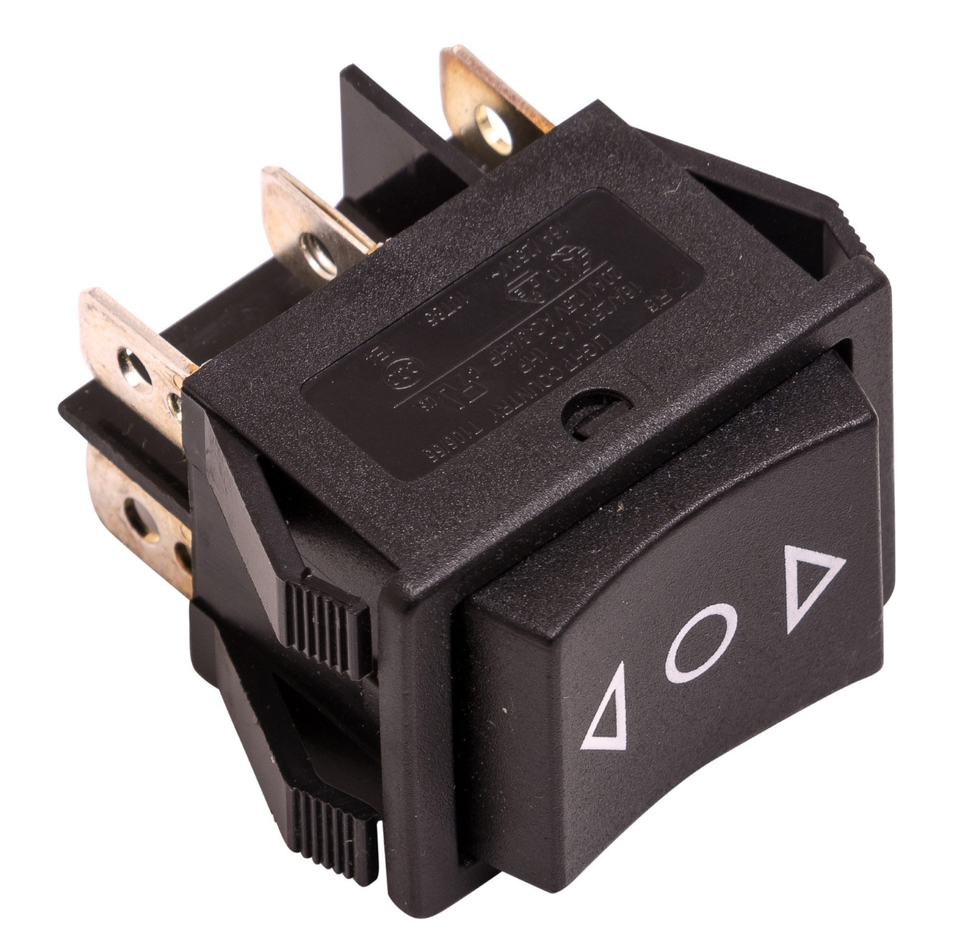

      Flush mounting DPDT (Double Pole Double Throw) Rocker Switches for Linear Actuators and other DC Motors - Momentary or Sustaining - Select above.

      Specifications

      • Model # MAN-RS2  Momentary
      • Model # MAN-RS Sustaining
      • Dash mountable
      • 3-position rocker switch: up/off/down spring loaded to return to the off position for Momentary or stays in position for Sustaining.
      • Push the switch and hold for the direction you want, actuator stops at the full stroke position, and is spring loaded to return to the middle/off position when you let go of the switch if you buy the monetary option, or just stay in position if you buy the sustaining model.
      Technical Drawings

      Linear Actuator or motor Rocker switch

      Linear Actuator wiring Diagram for a Rocker switch

      Linear Actuator wiring Diagram for a Rocker switch

      Wiring Diagram
