12 Volt Quick Connect Socket For Double-Pole Double-Throw Relay

      12 Volt Quick Connect Socket For Double-Pole Double-Throw Relay

      AUD
      Model #
      Quantity
      qty limit cart limit

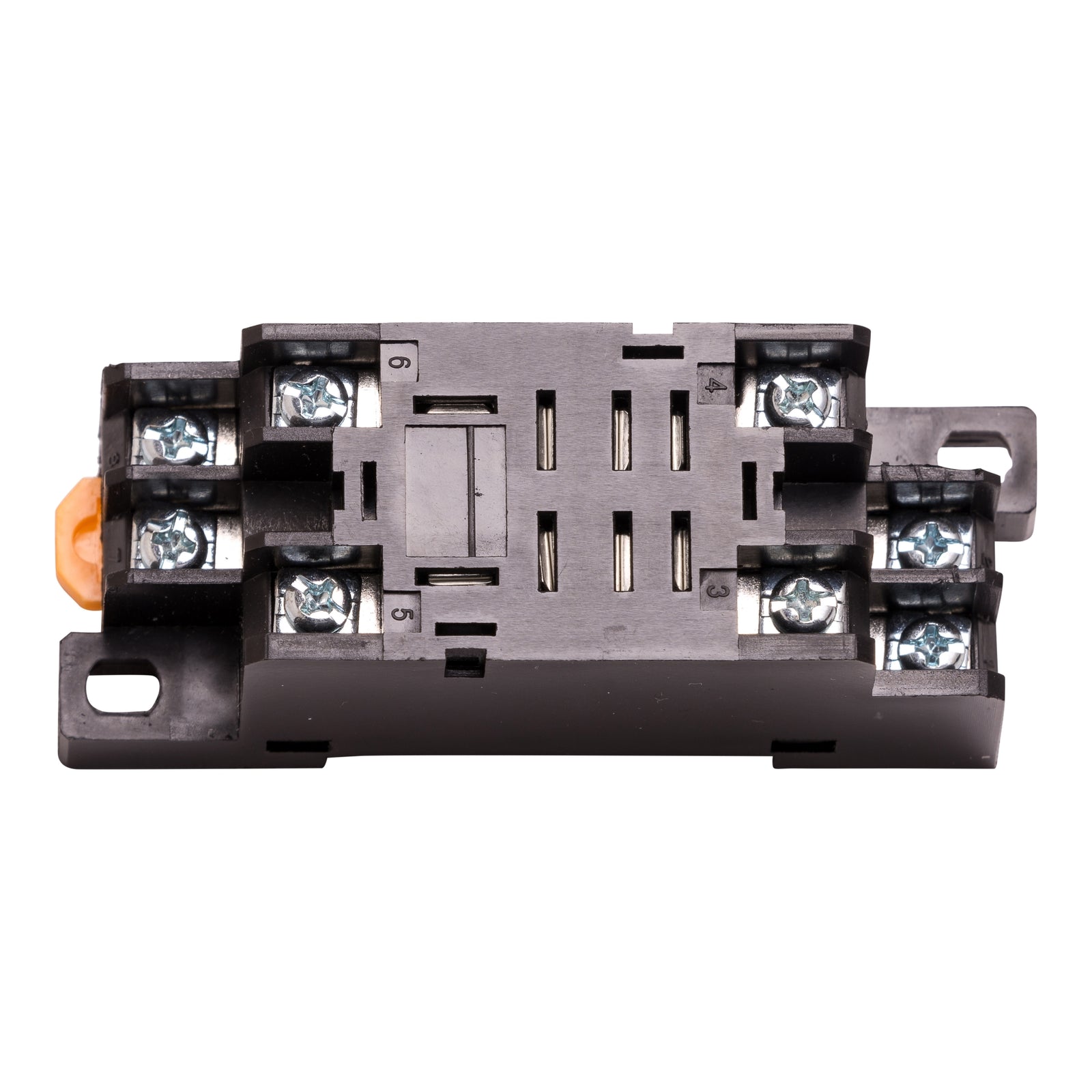

      This is a simple quick connector socket block for the FA-LB2-12DS (DPDT Relay sold separately). It features a tough plastic housing with screw terminals for easy wire connection.

      This is a simple quick connector socket block for the FA-LB2-12DS (DPDT Relay sold separately). It features a tough plastic housing with screw terminals for easy wire connection. See the schematic diagram below to match the screw terminals to the FA-LB2-12DS relay pins. The relay simply presses into place and the socket has 2 screw holes for secure fastening to your equipment.

      This product is the quick connect socket, matching FA-LB2-12DS relay sold separately.

      Technical Drawings

      Quick connect socket for DPDT relay

      Quick connect sockets for Actuator relays

      Relay for actuator wiriing diagram
