AC to DC Power Supply 12v 30A

      AC to DC Power Supply 12v 30A

      AUD
      Model #
      Quantity
      qty limit cart limit

      Get shipping estimates

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

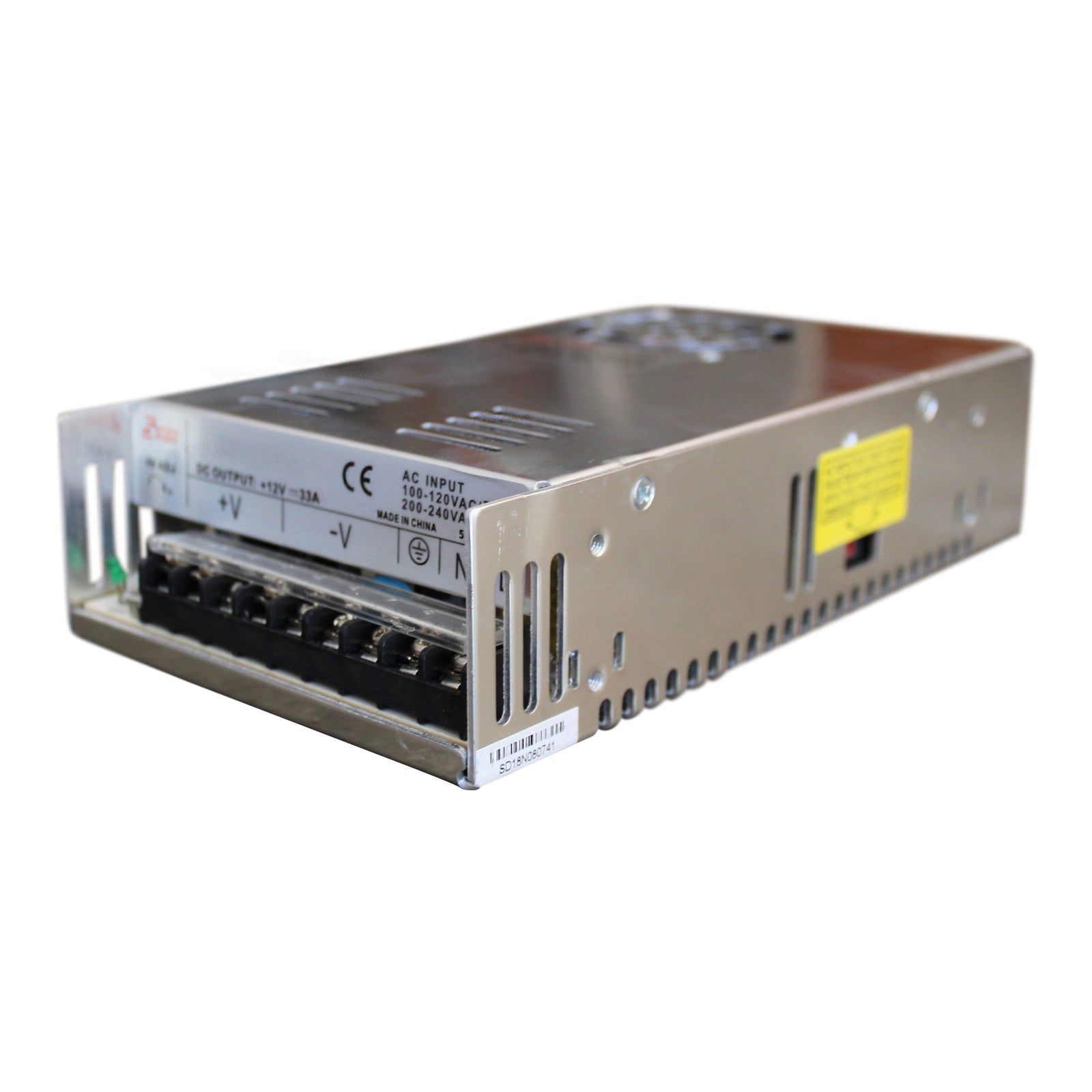

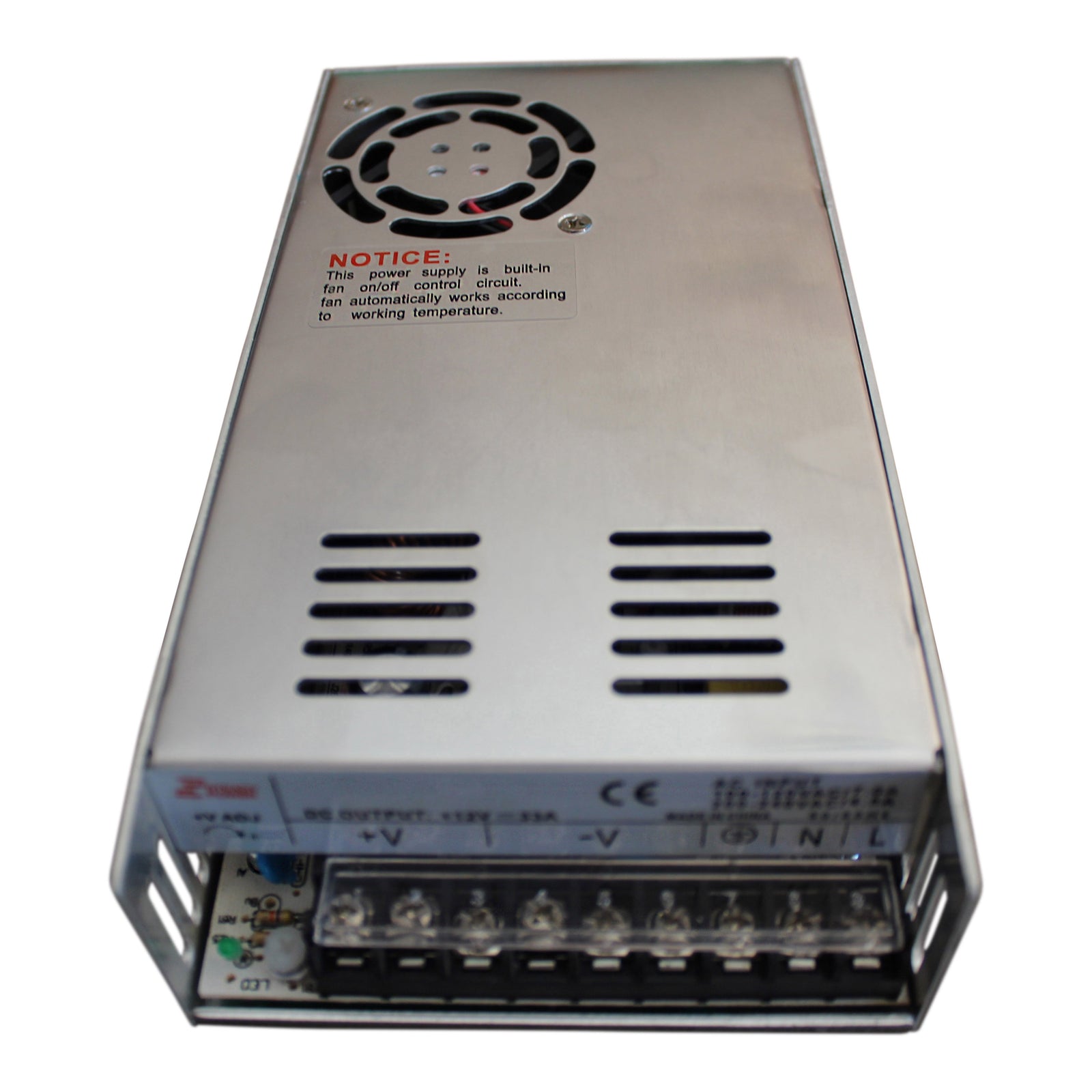

      This 12V DC power supply is the most popular way to power home automation or custom prototype applications. The Firgelli Automations power supply is a simple and easy approach to bringing 12 volt motion assemblies to life. Compatible with any device that requires 12v DC input.

      Inductive load type so ideal for high current start-up actuators like the Deluxe Rod, Heavy Duty Rod or Industrial Actuators.

      *Please ensure you check switch and it's on 230V before use

      Specifications
      MODEL FA-PA-12V-30A-IP20
      OUTPUT VOLTAGE 12 Volt
      VOLTAGE TOLERANCE ±1%
      OUTPUT CURRENT 30 Amp
      CURRENT RANGE 0~30 Amp
      LINE & LOAD STABILITY ±0.5%
      POWER 360 Watts
      EFFICIENCY 81%
      OUTPUT VOLTAGE RANGE 12 - 13.2 Volt
      INPUT VOLTAGE RANGE 90 ~ 132 VAC/180 ~ 264VAC
      FREQUENCY RANGE 47 ~ 63 Hz
      INPUT CURRENT 6.5A/115V 4A/230V
      INRUSH CURRENT 25A/115A 50A/230A
      LEAKAGE CURRENT <3.5mA/240VAC
      OVERLOAD PROTECTION 105% ~ 150%
      TEMPERATURE -10-50 ℃
      TEMPERATURE COEFFICIENT ±0.03% (0~50 ℃)
      VIBRATION 10 ~ 500 Hz, 2G 10 min/ 1 cycle
      SIZE 215mm x 115mm x 50mm
      WEIGHT 2.1 lbs.
      Technical Drawing
