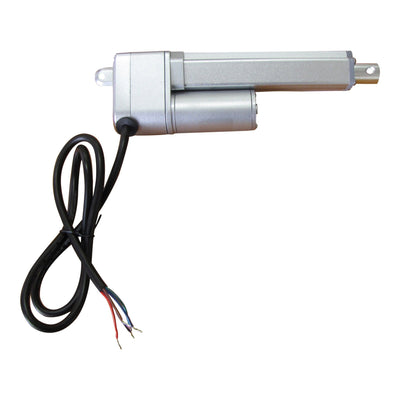

      When you need to know the exact positioning of your actuators, the Optical Feedback series is what you need. This powerful, reliable actuator comes with a built-in optical sensor that provides feedback when you need it.  The Optical Feedback has no built-in controller but does provide single-phase pulses as a position feedback signal that can be input to an external controller such as an Arduino

      To move between two and four actuators in synchronous we recommend our dedicated control board, the FA-SYNC-X. A video tutorial on how to use this product is available here

      CAD models of this actuator can be found under Resources/3D Files

      Features and Benefits

      • 10 hole optical encoder disk for the 200lbs and 400lbs units
      • 4 slotted optical encoder disk for the 35lbs units
      • 20 pulse/inch of stroke for the 35lbs (+/-5 pulses)
      • 100 pulses. inch of stoke for the 200lbs and 400lbs units
      • Internal limit switches automatically shut off the unit at the end of the stroke - This protects you and your equipment from possible damage.
      • Huge range of stoke options as standard:  1, 2, 3, 4, 6, 9, 12, 18, 24, and 30 inches are available - Gives you more flexibility.
      • 3 Force options - 35lbs 200lbs and 400lbs for greater flexibility
      • IP66 rated – dustproof and water-resistant - Because it never hurts to have more protection than you actually need
      • Maintenance-free - Gives you more free time to do more important things
      • CE and RoHS certified - for extra comfort knowing they are certified for safe use.
      • Accessories sold separately


      • Fits with the MB1-P bracket

      • Fits with FA-OS-IMD3 Base mounting Bracket to convert to Column Lift style Actuator
      Model FA-OS-35-12-(X) FA-OS-240-12-(X) FA-OS-400-12-(X)
      Dynamic Force 35 lbs 200 lbs 400 lb
      Static Force 200 lbs 500 lbs 800 lbs
      Speed ("/S) 2.0" .30" .30"
      Gear Ratio 5:1 20:1 19:1
      Duty Cycle 20%
      IP Rating IP66
      Screw Type ACME
      Sound Rating 20 dB over Ambient
      Input 12v DC
      Max Draw 5 A
      Clevis End 1/4" diameter
      Operational Temperature -26°C/65°C (-15°F/150°)
      Limit Switch Built-in (factory preset)
      Safety Certifications CE, ROHS
      Bracket(s)  MB1-P & FA-OS-IMD3
