Mini Track Linear Actuators

      Mini Track Linear Actuators

      Model #
      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF
      qty limit cart limit

      Get shipping estimates

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

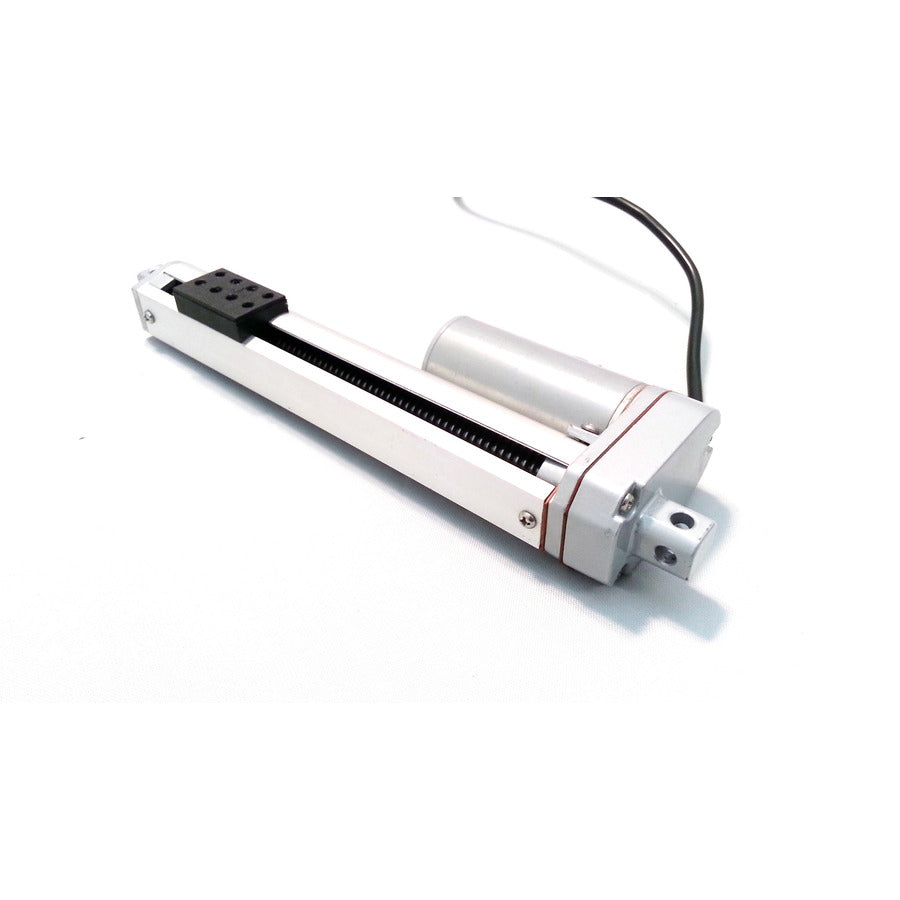

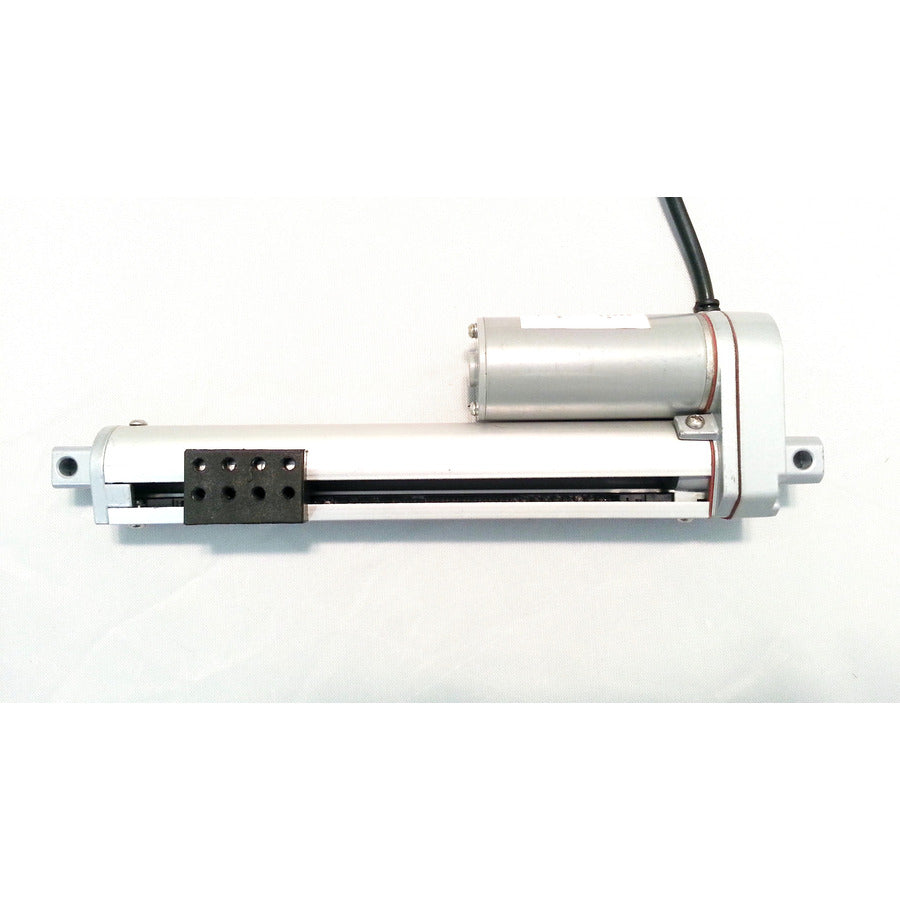

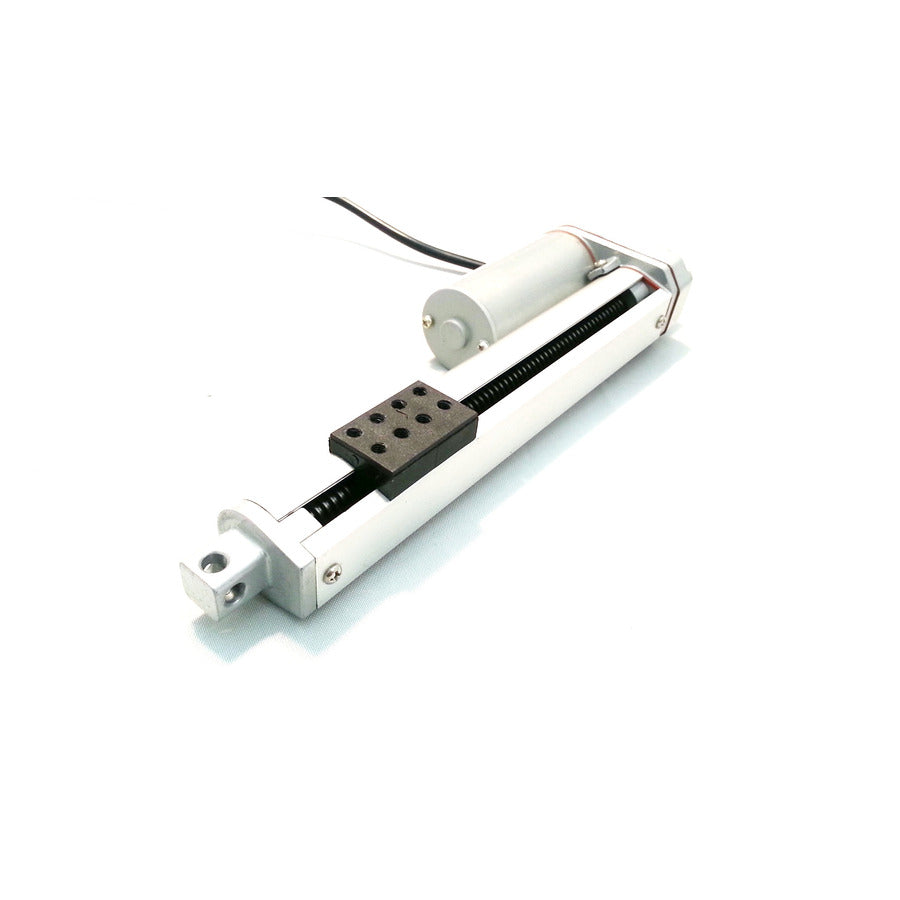

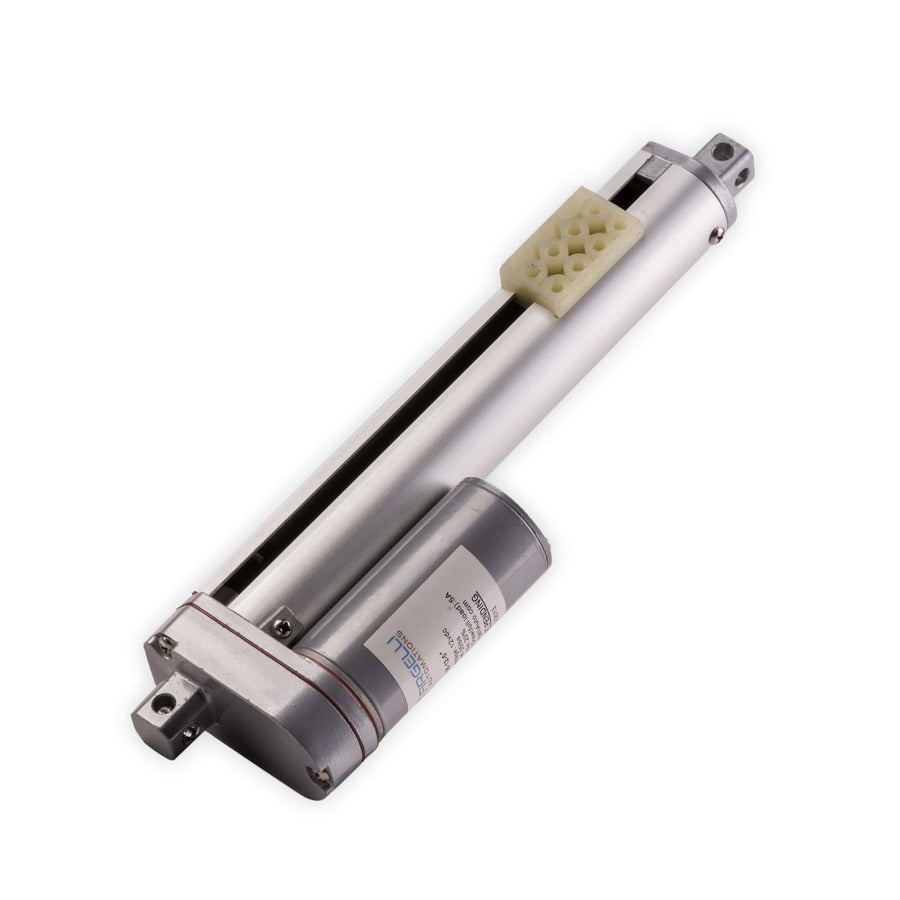

      Mini Track linear actuators have been developed by us for applications where space is limited. These actuators have no rod that slides in and out instead they have a slider that slides up and down the main body of the Actuator. This means they are more compact and offer more flexibility with your Automation projects.

      Due to the popularity of the Heavy-Duty Track Linear Actuator line, the Mini Track Actuator line was developed, tested, and put to production. The mini track linear actuators have hit the industry by storm, and have been providing superior service in a variety of different markets including:

      • Home theater
      • Automotive
      • Aerospace
      • Agriculture industry
      • And more

      The Mini Track Actuators offered by Firgelli Automations come in various stroke lengths, and all the standard features clients have come to expect in our products including but not limited to:

      • Factory preset internal limit switches
      • First rate materials providing smooth linear motion
      • An easy to connect two-wire design
      • Full certification with CE and RoHs
      All units come with clevis type mounting points on both ends, which are compatible with the MB1 Mounting Bracket as well as a sliding block which uses the MB9 Mounting Brackets for added flexibility and installation ease.

        *Patent pending design

        Model FA-TR-35-12-XX
        Dynamic Force 35 lb.
        Static Force 70 lb.
        Speed ("/S)  2"
        Duty Cycle 20% at 100% load, 50% at 25% of load
        IP Rating 43
        Max Draw 5A
        Input 12v DC
        Feedback None
        Synchronous Capability None, 5-10% variation in speed
        Operational Temperature -26°C/65°C (-15°F/150°)
        Limit Switch Built-in (factory preset)
        Safety Certifications CE, ROHS
        Bracket(s) MB1 and MB9
        Cable Length 1.5 feet


        Stroke Hole to Hole Weight Step File
        5" 10.17" 2.1 lbs FA-35-TR-12-5
        10" 15.17" 2.6 lbs FA-35-TR-12-10
        15" 20.17" 2.8 lbs FA-35-TR-12-15
        20" 25.17" 3.3 lbs FA-35-TR-12-20
        25" 30.17" 4.0 lbs FA-35-TR-12-25
        Technical Drawings

        Product Video

        Performance Graph

        Mini Track Performance Graph jpg
