Optical Base Mounting Bracket

      Optical Base Mounting Bracket

      AUD
      Model #
      Quantity
      qty limit cart limit
      View Cart

      Get shipping estimates

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

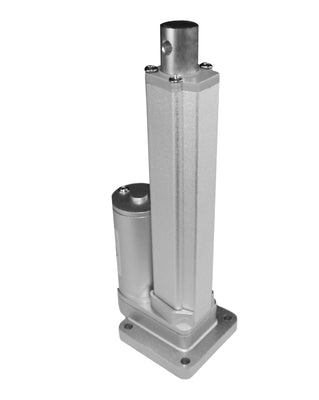

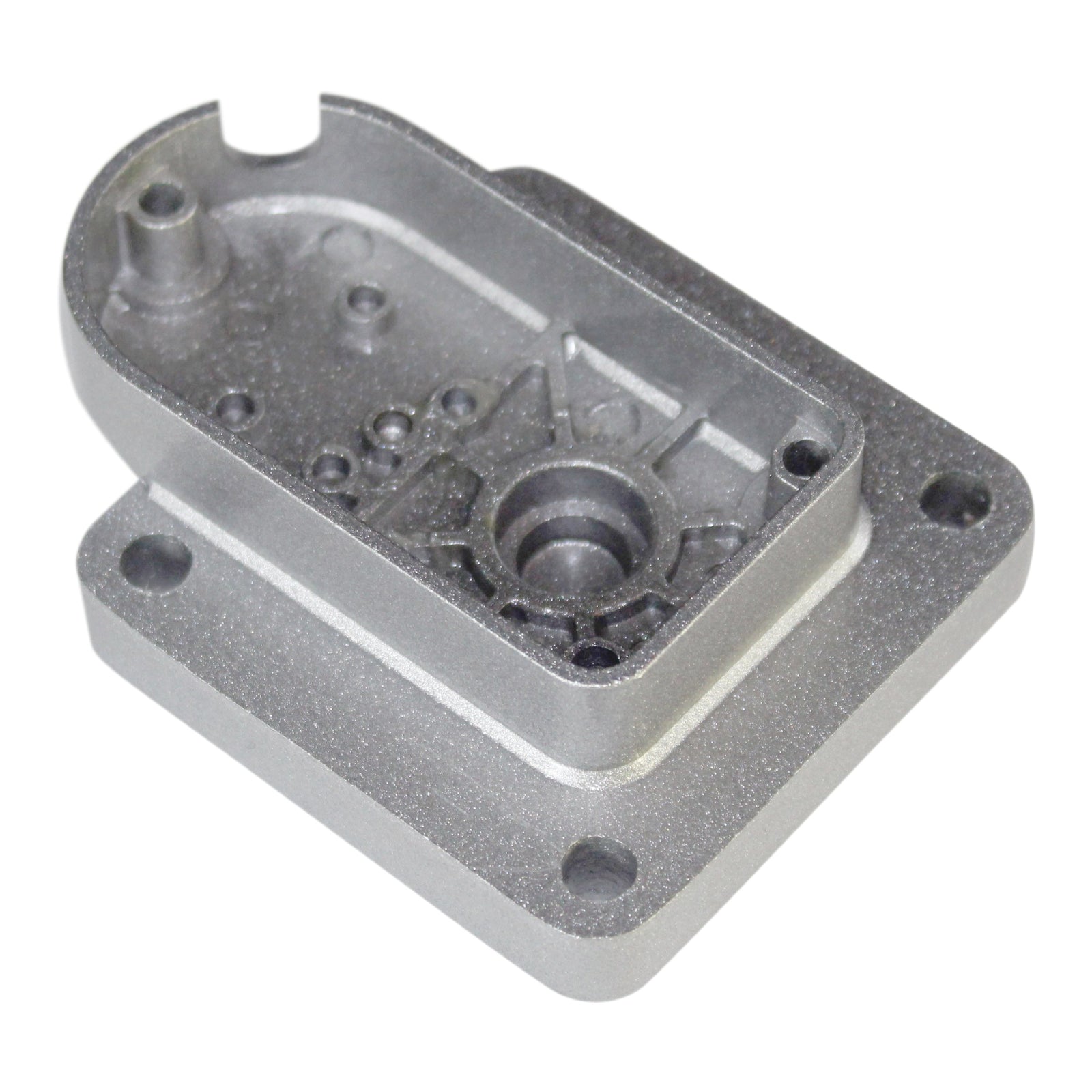

      This Base Mounting Bracket Converts the Optical Feedback Actuators to a Column Lift style Actuator. To install them you unscrew the 2 screws off the back of the actuator (watch the video below) and replace them with the screws that come with the bracket. The Optical Actuator bracket (FA-OS-IMD3) comes with longer screws to fit through the body.

      This bracket was specifically designed to work with our Optical Feedback Linear Actuators only.

      *NOTE: Does NOT fit the 400 lb. force Optical Feedback Actuators

      Technical Drawing

      To view or download 3D Step file


      Video

      How to convert Premium Actuators using this Base Plate Bracket
