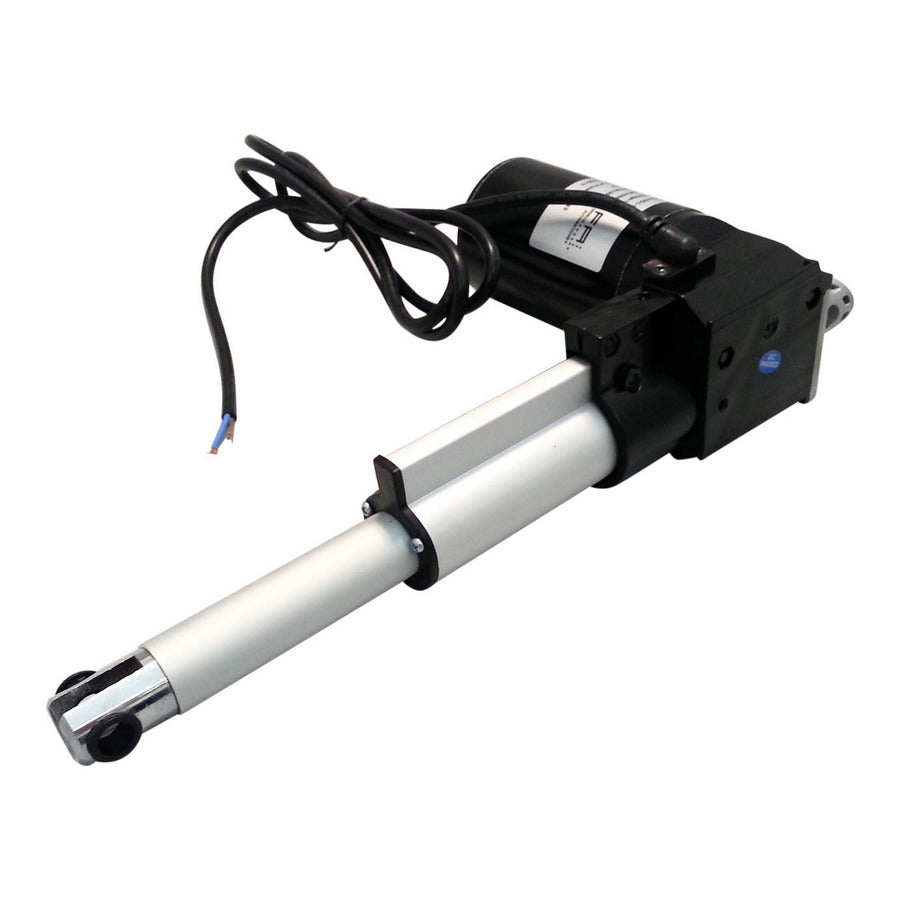

      These Heavy Duty Rod Linear Actuators uses a worm-gear drive mechanism, which means they are very quiet and offer high efficiency as a result.

      CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings (below), or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

      The Heavy Duty line was developed with high standards in mind. Our clients demand the best quality and performance for their money, inspiring us to come up with this rugged design. This versatile unit features an aluminum shaft to shed weight, internal limit switches, an aluminum alloy inner tube, as well as a high-performance 12 volt DC motor that is capable of producing between 200 and 1000 lbs. (90-453 kg) of force.
      No matter your application, installation doesn’t need to be a hassle. Required components consist of just two brackets, one for either end, with quick-release pins for easy fitting and set-up. Controlling the unit is just as easy via a 2-wire system, making this unit a ‘plug & play’ type accession unique to Firgelli Automations.

      *Due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. Using a gas spring of the correct rating will alleviate the back drive. Another option is to use an SPDT relay to work as a back-EMF brake. See this tutorial for more information

      Model FA-400-L-12-XX FA-1000-L-12-XX
      Dynamic Force 400 lb. 1000 lb.
      Static Force (back driving threshold) 450 lb.  900 lb.
      Speed ("/S) @ Full Load 0.4 0.2
      Duty Cycle 20%, maximum 5 mins continuous use
      IP Rating 43
      Screw Type Worm Gear
      Input 12v DC
      Max Draw 5 A
      Feedback None
      Synchronous Capability None, 5-10% variation in speed
      Operational Temperature -26°C/65°C (-15°F/150°F)
      Limit Switch Built-in, non-adjustable
      Safety Certification CE
      Bracket(s) MB3 or MB3U
      Cable Length 4 feet


      Stroke Retracted Length Extended Length Weight STEP Files
      3" 10.37" 13.37" 4.5 lbs. FA-(F)-L-12-3
      6" 13.37" 19.25" 5.1 lbs. FA-(F)-L-12-6
      8" 14.88" 23.12" 5.3 lbs. FA-(F)-L-12-8
      9" 16.5" 25.5" 5.5 lbs. FA-(F)-L-12-9
      12" 19.12" 31.12" 5.9 lbs. FA-(F)-L-12-12
      15" 21.94" 37.19" 6.1 lbs. FA-(F)-L-12-15
      18" 25.75" 43.62" 6.7 lbs. FA-(F)-L-12-18
      24" 31.81" 54.44" 7.4 lbs. FA-(F)-L-12-24
      30" 37.5" 67.5" 8.2 lbs. FA-(F)-L-12-30

       *Stroke length tolerance +/- 0.125"

      Technical Drawings

       Performance Graph
      Rod Actuator / Current & Speed vs Load
      Product Video

      Heavy Duty Linear Actuator Review

      Comparison Video

      Heavy Duty vs Premium High Force Linear Actuator

      3D Model Downloads (.STEP)

      200lb, 400lb and 1000lb Force
