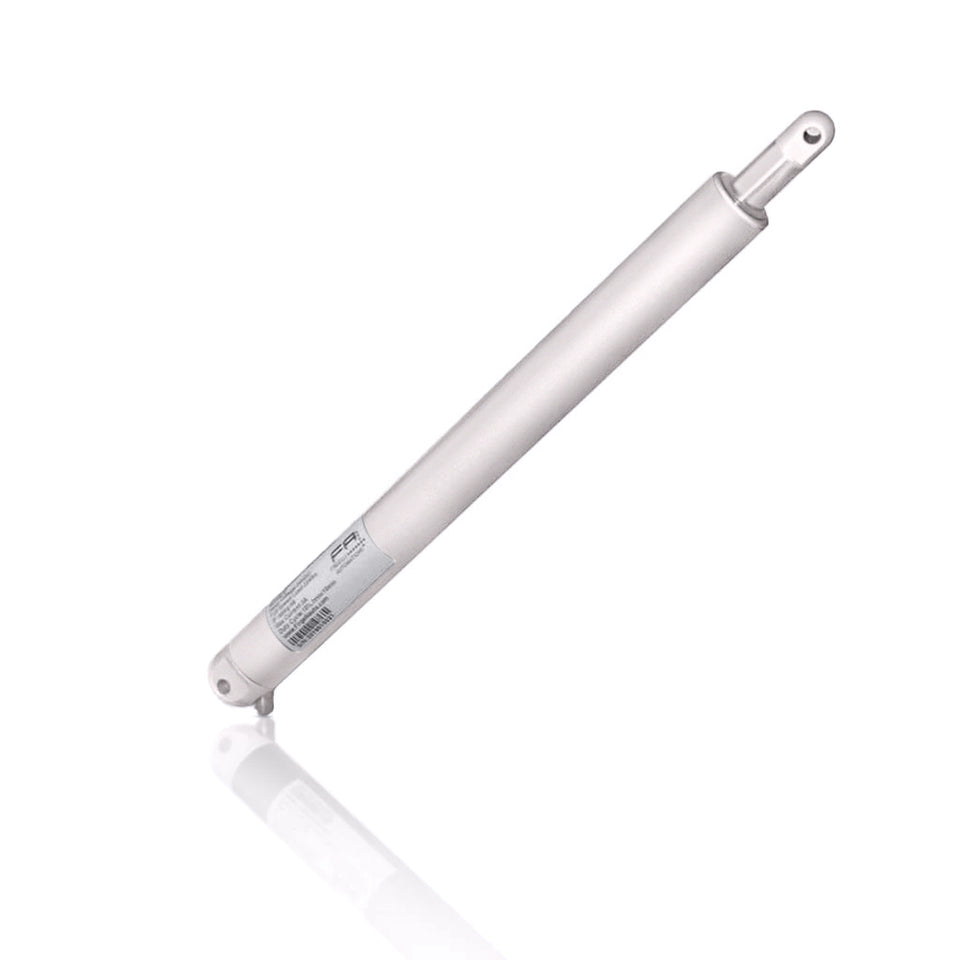

      The Bullet Series 36 Cal. Linear Actuator was developed to have a slim in-line motor design. Includes built-in hall effect sensor, which allows for synchronization, position and speed control. The hall effect feedback is vital to applications where multiple actuators must travel in sync.

      To move between two and four actuators in synchronous we recommend our dedicated control board, the FA-SYNC-X. A video tutorial of how to use this product is available here.

      *Product now silver

      Specifications
      FA-BH36-224-12-(S)
      Push/Pull Force 224 lbs.
      Static Force 268 lbs.
      Speed at full load 0.157”/sec
      Gear Ratio 100:1
      Voltage 12V
      Max Current at full load 3A
      Duty Cycle 25% at 100% load. Max. 5 mins continuous use
      Operating Temp. Range -4°F to 149°F (-20°C to 65°C)
      IP Rating IP66
      No Load Noise Level 50-70 dB
      Diameter 1.42" (36mm)
      Outer Housing Material Aluminum
      Expansion Rod Material Stainless Steel 304
      Limit Switch  Built-In non-adjustable
      Feedback Hall Effect Sensor
      Hall sensor Pulses per inch of travel 1,828 (72 pulses per mm of travel)
      Number of Hall Magnet 3PPR
      Pitch of leadscrew P2.5*2T
      Revolutions per inch stroke  0.2" (5.08mm)  Stroke per Revolution of the Leadscrew. (5 revolutions per Inch of travel)
      Hall sensor pulses per revolution of Leadscrew 360PPR
      Feedback Voltage 5V
      Synchronous Capability Yes, with our Sync Control Board or a  Microcontroller
      Cable Length 1.5 feet
      Wire Gauge 18 AWG Motor, 20 AWG Sensor
      Brackets MB36SM
      Stroke Length Retracted Length Extended Length Weight (lb) STEP File
      6" 16.34" 22.26" 2.4 FA-BH36-224-(F)-6
      8" 18.30" 26.20" 2.6 FA-BH36-224-(F)-8
      10" 20.27" 30.27" 2.8 FA-BH36-224-(F)-10
      12" 23.42" 35.25" 3.15 FA-BH36-224-(F)-12
      14" 25.24" 39.19" 3.4 FA-BH36-224-(F)-14
      18" 30.15" 48.24" 3.95 FA-BH36-224-(F)-18
      22" 34.45" 56.12" 4.05 FA-BH36-224-(F)-22
      24" 36.45" 58.12" 4.25 FA-BH36-224-(F)-24
      Technical Drawings

      actuator dimensions

      Curve Graphs

      36 Cal. Actuator Speed vs load graph

      Product Video

      Bullet Series 36 Cal. review


      Comparison Video

      Bullet Series 36 cal. vs 50 cal.


      3D Model Downloads (.STEP)


      Wiring Diagram

      Click here to view our wiring diagram generator to help you set up your actuator system

      Wiring Diagram Generator
